3rd Function Kit For Kubota L2502, L3302, L3902 Tractors

SAVE 5% WITH DISCOUNT CODE GWT

Buy direct from Summit Hydraulics and have a 3rd Function Kit shipped right to your home.

Third Function Valve Kit for Kubota L2502, L3302, and L3902 Tractors

L2502, L3302, and L3902: LA 526 Loader

SKU: TFK2

This all-in-one Kubota third function kit allows you to add an electronically controlled hydraulic function to your Kubota L2502, L3302, and L3902 with LA 526 Loader without the need for expensive factory add-ons.

Commonly used to add:

• Grapples
• Augers
• Snowplow tilt
• Snow blower

(Not designed for tractors with cabs or closed cabs)

This 3rd function valve kit is powered by the power beyond port of your existing loader valve which will allow you to use multiple functions at the same time (i.e. curl bucket and close grapple).

Kit includes joystick handle that replaces your existing handle and has 2 integrated momentary push button switches so you can open and close your cylinder with a push of a button. Our joystick handle has a comfortable ergonomic design and is fully weatherproof.  The handle will attach onto existing joystick shaft using the removable adapter bushings and adjustment screws.

Joystick Handle:

• Kubota 3rd function valve joystick
• Ergonomic design with 2 momentary push button switches
• Fully weatherproof
• Mounts on existing loader joystick shaft
• Removable adapter bushings designed to fit any joystick shaft
• Connects to 12v power source

Valve Body Features:

• Best third function valve for Kubota
• Solid aluminum housing designed for rugged use
• Max Operating Pressure: P = 5080 PSI, T = 3050 PSI, A & B = 5080 PSI
• Flow Rating: 15 GPM
• Aluminum Body
• 3000 PSI Rated
• #8 SAE O-Ring ports ensure solid seal and prevent blockages

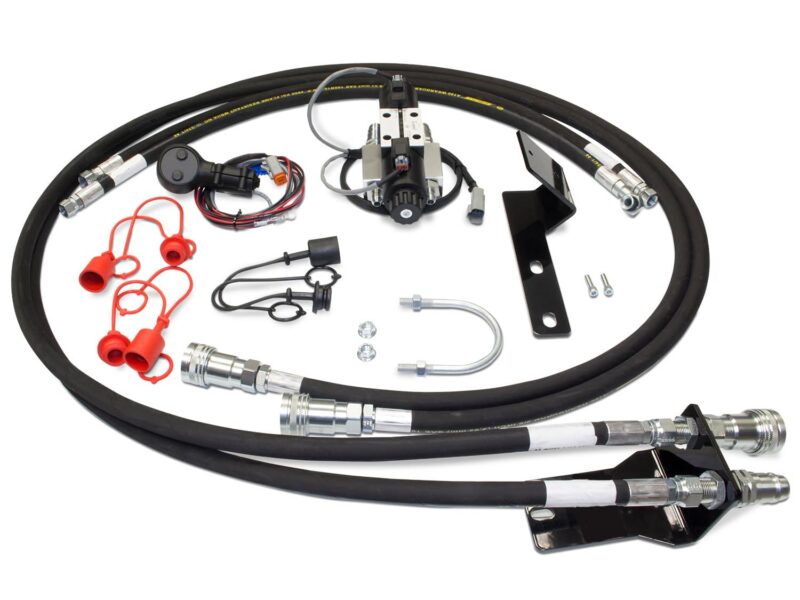

Kubota L2501, L3200 Kit Includes:

• 12v Solenoid Operated Valve
• Joystick Handle with 2 momentary push button switches
• Wiring harness with 2 weatherproof Deutsch connectors
• Valve Mounting Bracket (including hardware)
• Quick Coupler Mounting Bracket (including hardware)
• 3 – 1/2” Body Agricultural Style Female Couplers
• 3 – 1/2” Body Agricultural Style Male Couplers
• Dust Caps
• 4 – Hydraulic Hose Assemblies (To Connect Valve and (1) Hydraulic Cylinder)
• Zip Ties
• Installation Instructions
