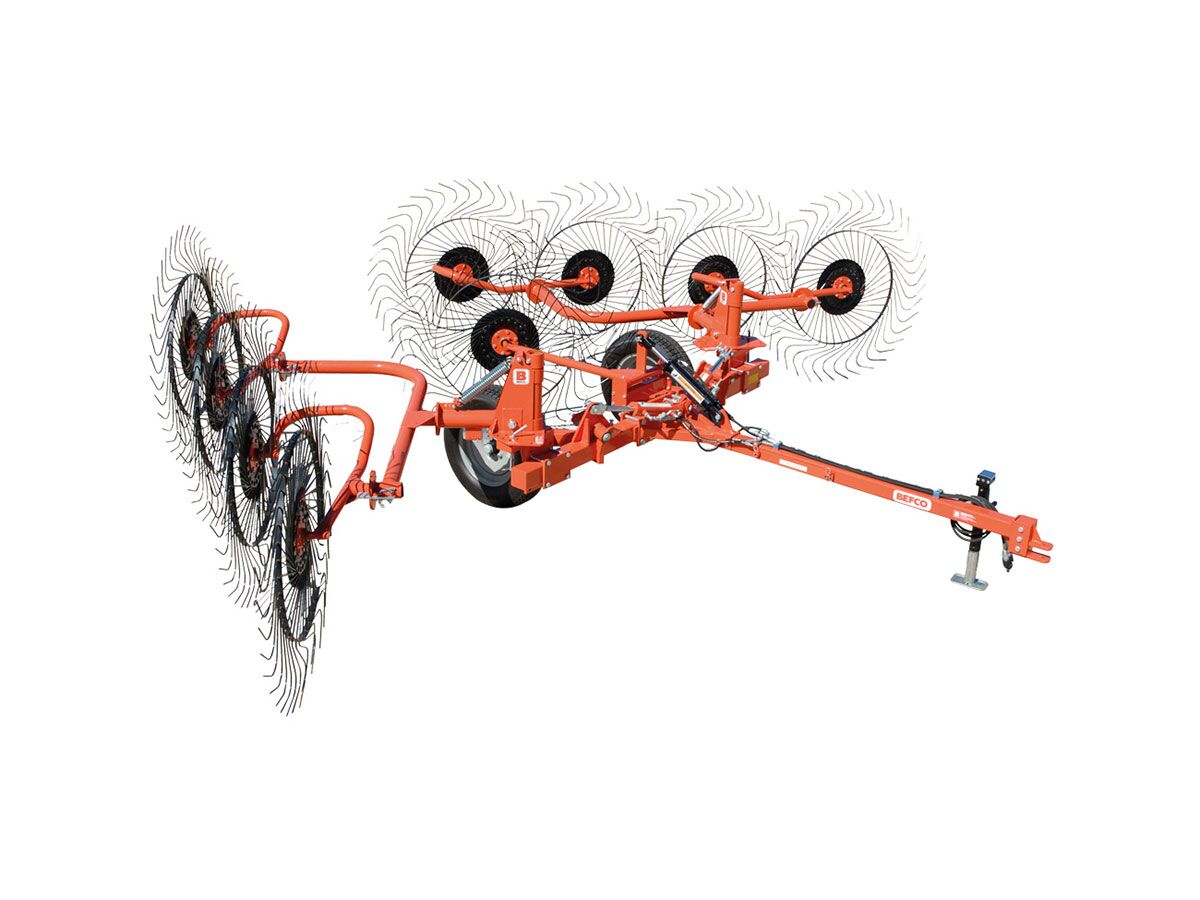

Befco HRC Pull-Type Wheel Rakes for Hay
Use BEFCO’s Pull-Type V-Shaped Wheel Rakes to collect cut hay into wind rows for baling. Certain configurations can also turn the hay or spread it for drying. See below which models can accomplish multiple tasks.
- Available with 8, 10, or 12 Ground-Driven Wheel Rakes
- For Tractors with 30–80 horsepower
- Can Also Be Used For Spreading or Turning
- 8 and 12 Wheel Models Only
- Double Action Hydraulic Cylinders
- For Single Side Operation and Transport
- Controlled by Ball Valve
- Working Speed of up to 14 mph
- Floating Rake Wheels with Spring Steel Tines
- Follow Ground Contour Evenly
- Adjustable Raking Width
- Adjustable Wind Row Width
- Adjustable Raking Angle
- Narrow 8 ft Transport Width
“V” Pull-Type HRC Wheel Rake Model Specs
| Model | HP | Hitch | # of Wheels | Wheel Ø | Teeth per wheel | Tooth Ø | Working width | Transport width | Transport height | Working speed mph | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HRC-08V | 30-80 | Pull-type | 8 | 56″ | 40 | 9/32″ | 21’4″ | 8′ | 8’10” | 14 | 1290 lb |
| HRC-10V | 30-80 | Pull-type | 10 | 56″ | 40 | 9/32″ | 23’4″ | 8′ | 10′ | 14 | 1457 lb |
| HRC-12V | 30-80 | Pull-type | 12 | 56″ | 40 | 9/32″ | 25’7″ | 8′ | 12’1″ | 14 | 1623 lb |
