Dirt Dog Landscape Rakes For Tractors
Dirt Dog’s Landscape Rake frames are reinforced to prevent flexing. The high carbon spring steel rake tines are secured to the frame using two bolts to eliminate rotation, and are easily replaceable should the need arise. Optional gauge wheels are available to prevent overpenetration of the tines on the LLR and MLR series, making it even easier to maintain clean, well-groomed lots.
Designed for Category I 3-Point Hitches and Quick Hitches, Dirt Dog’s Landscape Rake has eight pre-set angles, revolving around a center point allowing for forward or reverse orientation, and angled raking too which allows debris to push and collect in one row as you drive. Heat-treated, high carbon, spring-steel tines bolt in place along the frame, and are easily replaced should one get bent. You can still use the rake with a bent tine, but it’s most consistent if all tines are in their original shape.

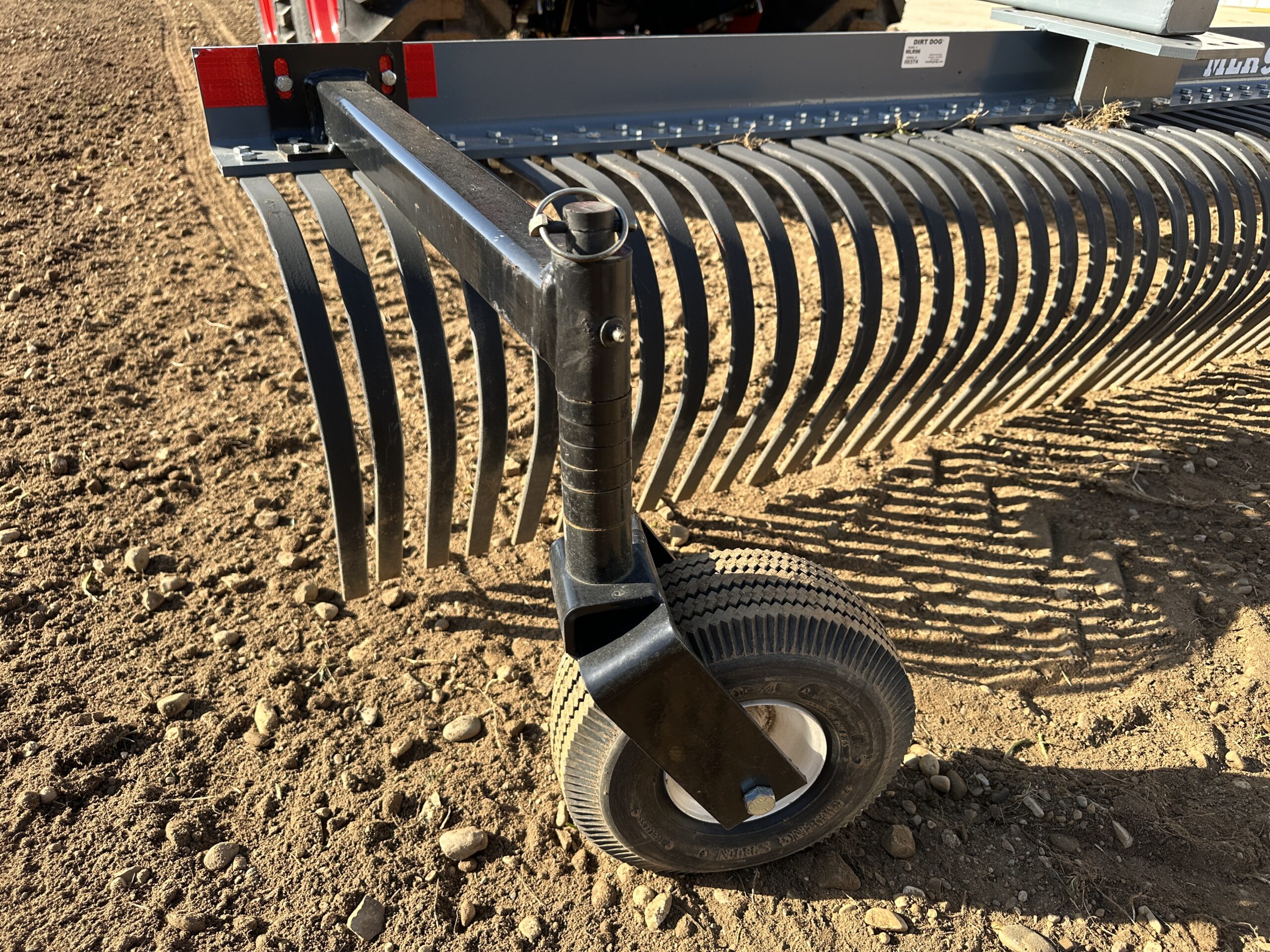

Optional gauge wheels offer consistent rake depth to use the rake to grade a gravel drive or parking lot. We used the gauge wheels to do a final leveling pass on our soil before laying gravel for our trailer parking pad. You can see that project in the videos below.
For a landscape rake, we recommend sizing wider than your tractor’s footprint because a rake is often used at an angle that decreases it’s perpendicular width.
All Dirt Dog Landscape Rakes are Made in the USA, down in Commerce, GA.
Light Duty CLR LANDSCAPE RAKE DETAILS
The CLR series is perfect for compact tractors 38hp and less.
- Position Rake in 5 forward angles (15° increments) and 3 reverse angles (30° increments)
- 2 hole, 5/16″ × 1″ heat treated, high carbon spring steel tines
- 3″ × 4″ × 1/4″ rake frame in 48″ and 60″ widths
- Cat I 3-Point & Cat I Quick Hitch Compatible
___

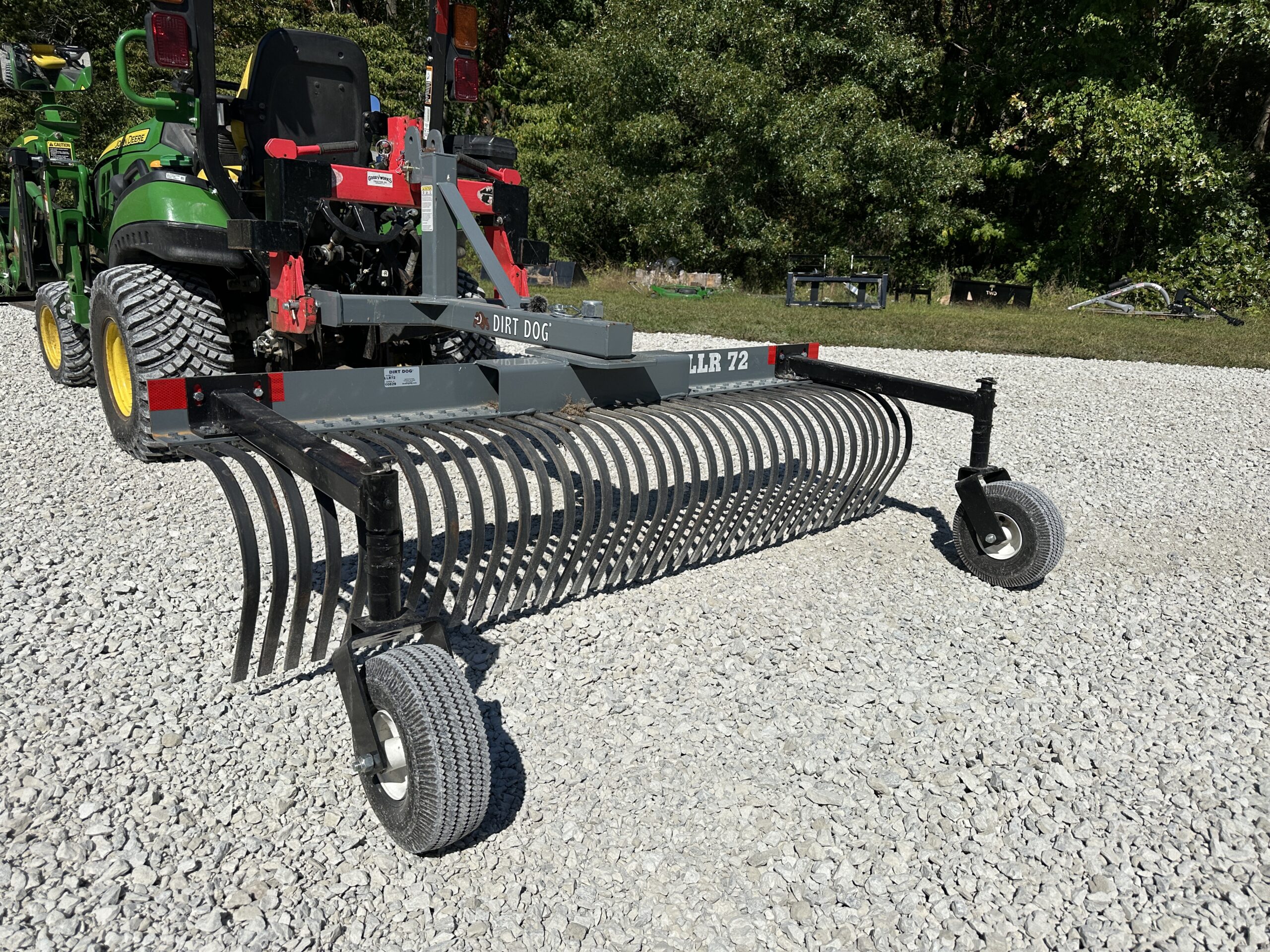

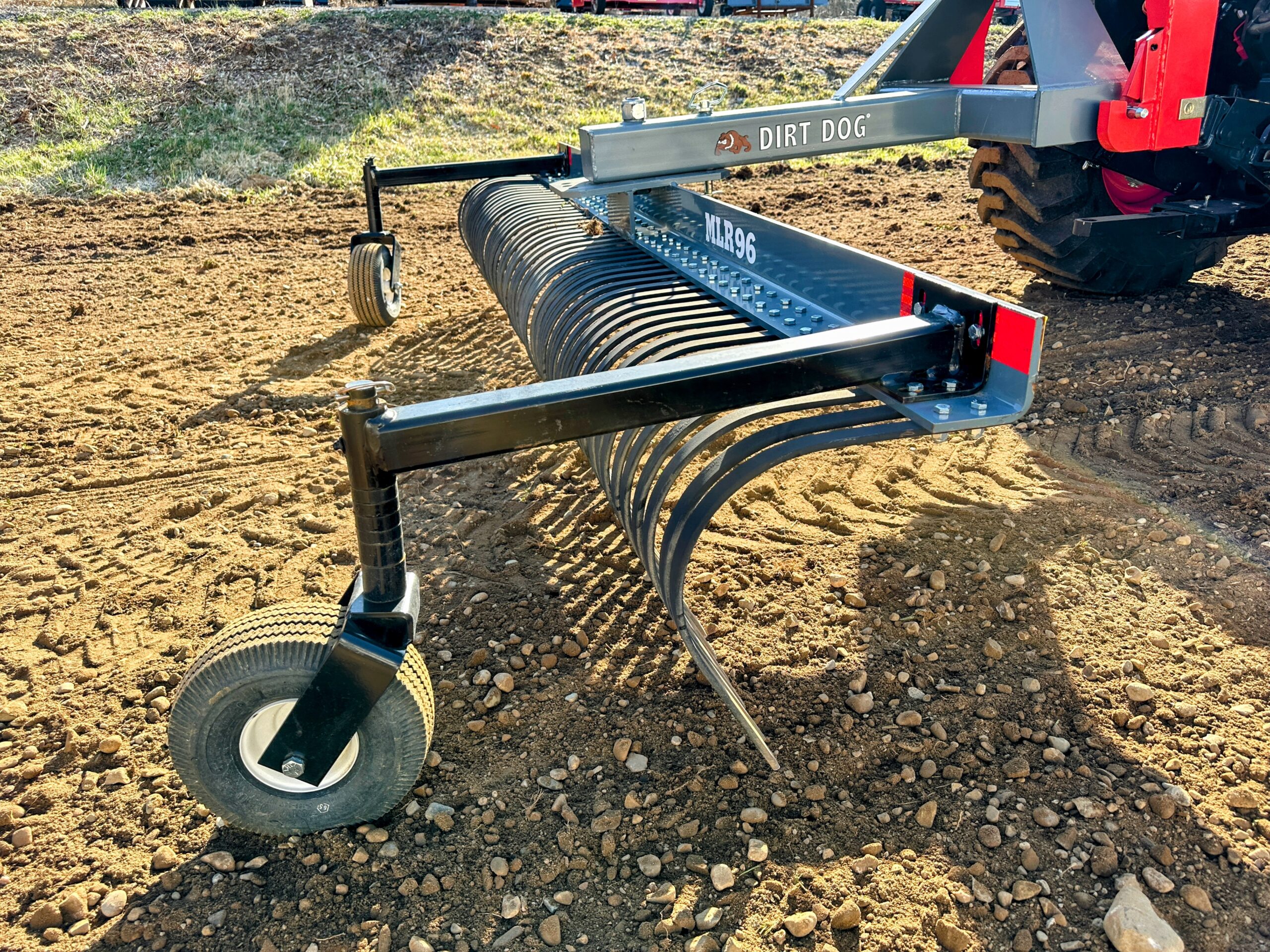

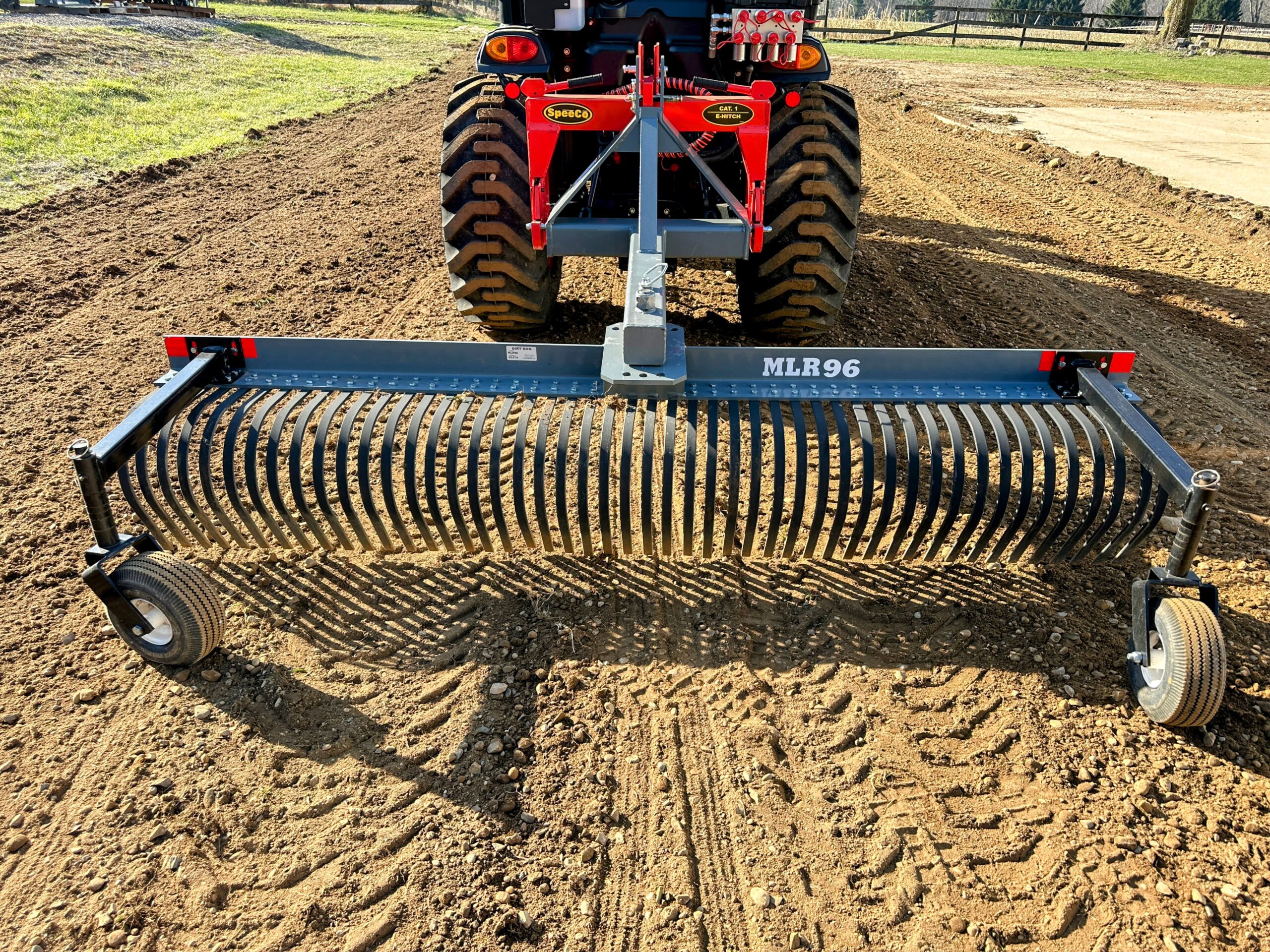

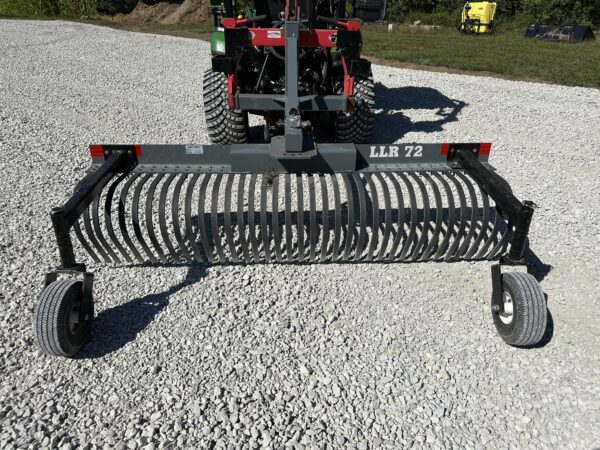

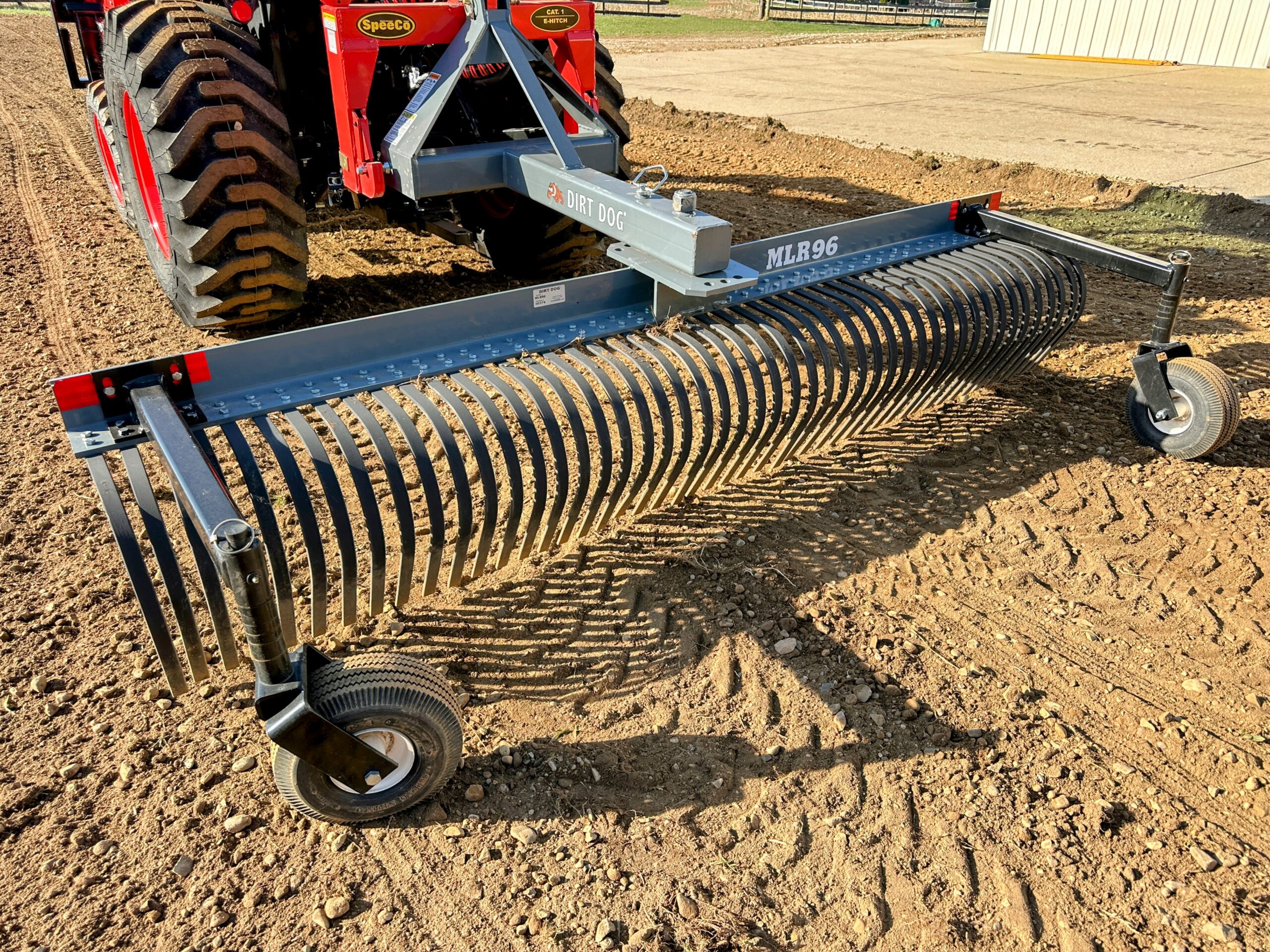

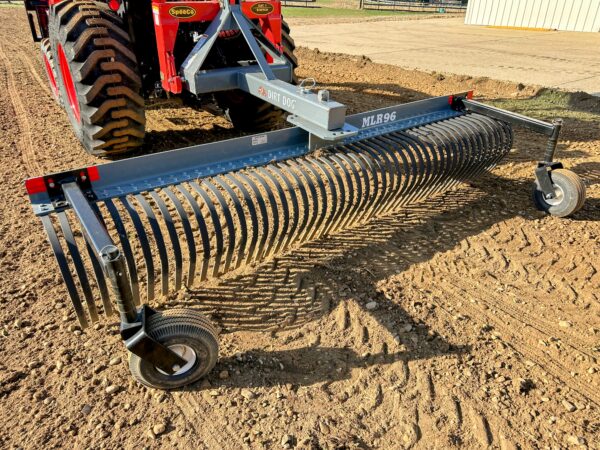

Heavy Duty MLR LANDSCAPE RAKE DETAILS
The MLR series of rakes are bigger, more heavy-duty, and best for the largest compact tractors.
- Position Rake in 5 forward angles (15° increments) and 3 reverse angles (30° increments)
- 2 hole, 5/16″ × 1″ heat treated, high carbon spring steel tines
- 4″ x 4″ x 3/8″ rake frame available in 72″, 84″ and 96″ widths
- Cat I 3-Point & Cat I Quick Hitch Compatible
- Optional Gauge Wheel Set
Upgrade your 3-point attachment performance, improve operator efficiency, and get better results on your projects with a hydraulic top and tilt kit. These hydraulic cylinders replace your manual top and side link on the 3-point hitch and allow you to make adjustments on the fly to your 3-point attachment. Save 5% with code GWT at Summit Hydraulics. Do-it-yourself hydraulics solutions that will completely change the way you use your tractor.
*Gauge Wheels not guaranteed to be in stock. They may drop ship from the factory in 3-4 weeks.
