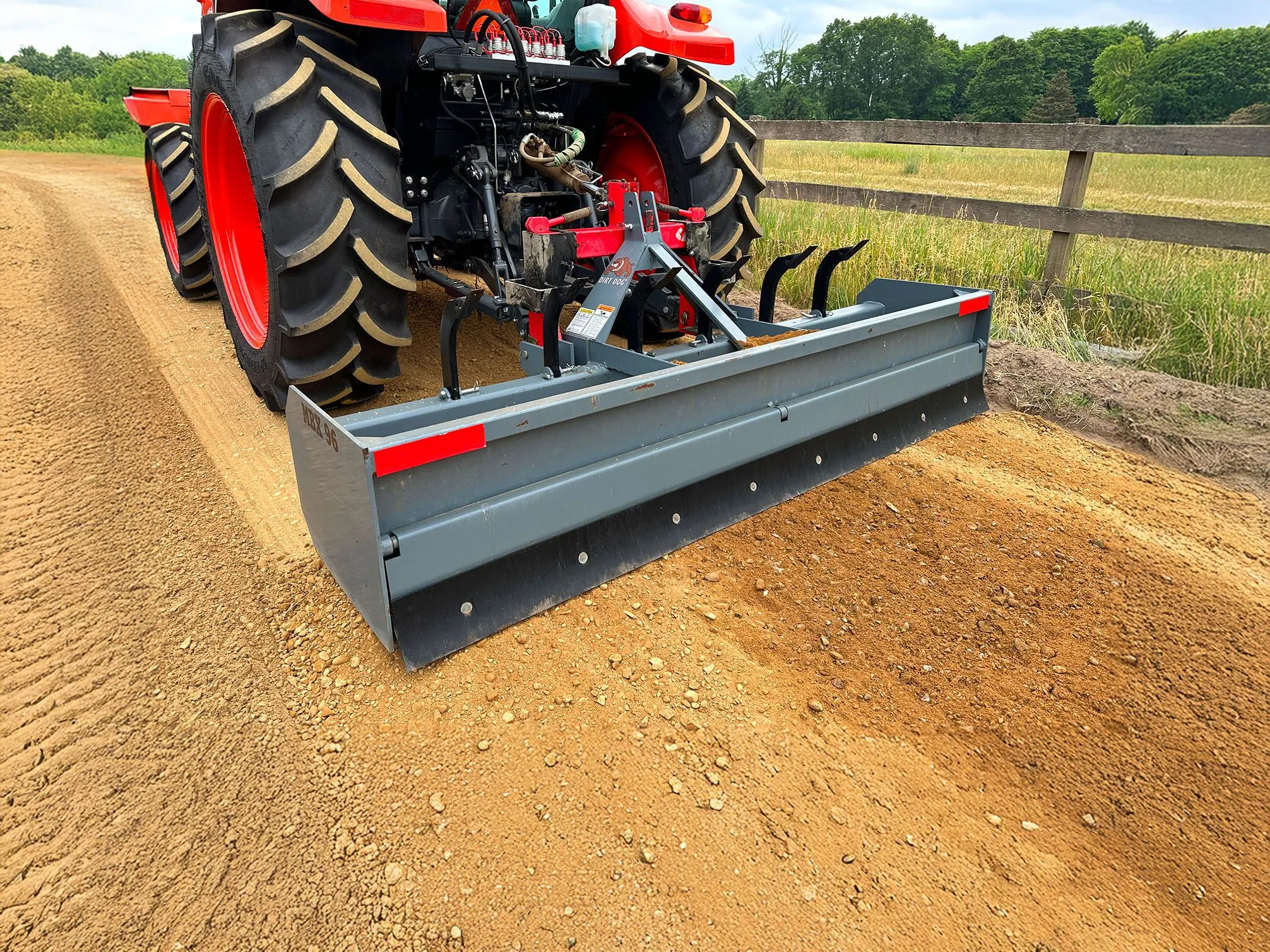

Box Blade For Tractors by Dirt Dog

Light Duty CBX BOX BLADE Details

The CBX series was engineered to be capable, light duty box blade for subcompact and small compact tractor owners. Notice the weight difference between this series and the BBX for the same width attachment.

• Category I 3-Point and Quick Hitch Compatible
• Bolt-On A-frame
• 3/16″ side plates
• Adjustable and replaceable shanks
• Two 3/8″ × 6″ bolt-on reversible and replaceable cutting edges
• 17 11/16″ Box Depth
• Max 24 horsepower

Light Duty CBX Models

• CBX48: 48″, 240 lb, 4 shanks, 24 hp Tractor
• CBX60: 60″, 280 lb, 5 shanks, 24 hp Tractor

Standard Duty BBX Box Blade details

The BBX is an ideal option for compact tractor owners who need a larger capacity and heavier duty box blade, but don’t have unlimited horsepower.

• Category I 3-Point and Quick Hitch Compatible
• Bolt-On A-frame
• 4″ square scarifier tube from 5/16″ steel
• 5/8” shanks with replaceable plow points
• Two 6″ x 3/8″ bolt-on reversible and replaceable cutting edges
• 20″ Box Depth
• Max 40 horsepower

Standard Duty BBX Models

• BBX48: 48″, 260 lb, 4 Shanks, 40 hp Tractor
• BBX60: 60″, 325 lb, 4 Shanks, 40 hp Tractor
• BBX65: 65″, 358 lb, 5 Shanks, 40 hp Tractor
• BBX72: 72″, 390 lb, 5 Shanks, 40 hp Tractor

Heavy Duty SBX Box Blade details

The original SBX Box Blade is heavy duty enough for most jobs and has been manufactured by Dirt Dog for years.

• Category I 3-Point and Quick Hitch Compatible
• Heavy duty welded A-frame with double strap hitch
• 3/8″ end plates
• 4″ square scarifier tube from 5/16″ steel
• Two 6″ x 1/2″ bolt-on reversible and replaceable cutting edges
• 24″ Box Depth
• Max 50 horsepower

Heavy Duty SBX Models

• SBX48: 48″, 430 lb, 4 Shanks, 40 hp Tractor
• SBX60: 60″, 490 lb, 5 Shanks, 40 hp Tractor
• SBX65: 65″, 510 lb, 5 Shanks, 40 hp Tractor
• SBX72: 72″, 550 lb, 6 Shanks, 50 hp Tractor
• SBX78: 78″, 580 lb, 6 Shanks, 50 hp Tractor
• SBX84: 84″, 610 lb, 6 Shanks, 50 hp Tractor

Extreme Duty Box Blade Details

The MBX series builds on the strengths of the original heavy duty SBX by adding metal where it counts. If the job calls for a heavy duty box blade, this is what you will want to use.

• Category I and II 3-Point and Quick Hitch Compatible
• Heavy duty welded A-frame with triple strap hitch
• 1/2″ inch wear plates welded to 3/8″ end plates for strength and longevity
• 4″ square scarifier tube from 3/8″ steel
• Two 6″ x 1/2″ bolt-on reversible and replaceable cutting edges
• 24″ Box Depth
• Floating rear tail gate
• Max 65 horsepower

Extreme Duty MBX Models

• MBX60: 60″, 580 lb, 5 Shanks, 65 hp Tractor
• MBX72: 72″, 640 lb, 6 Shanks, 65 hp Tractor
• MBX84: 84″, 710 lb, 6 Shanks, 65 hp Tractor
• MBX96: 96″, 790 lb, 6 Shanks, 65 hp Tractor
