Bale Spear – Loader Mount by Dirt Dog

Dirt Dog Loader Mounted Bale Spear Highlights

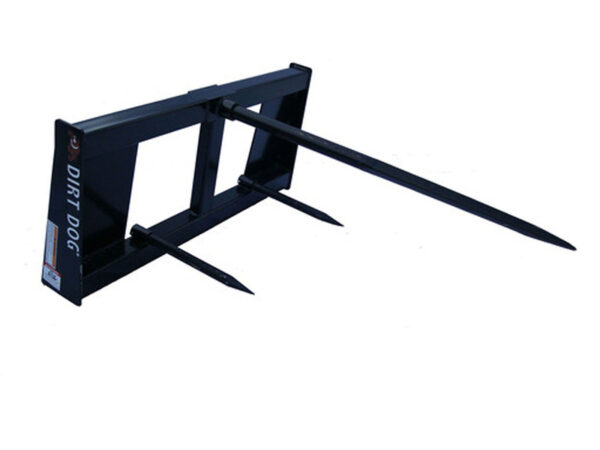

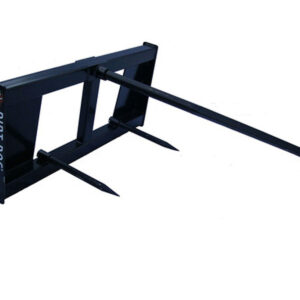

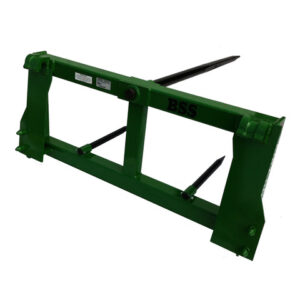

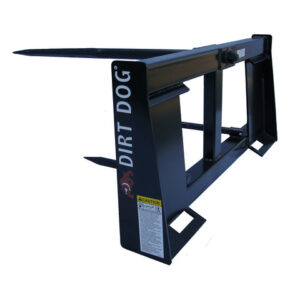

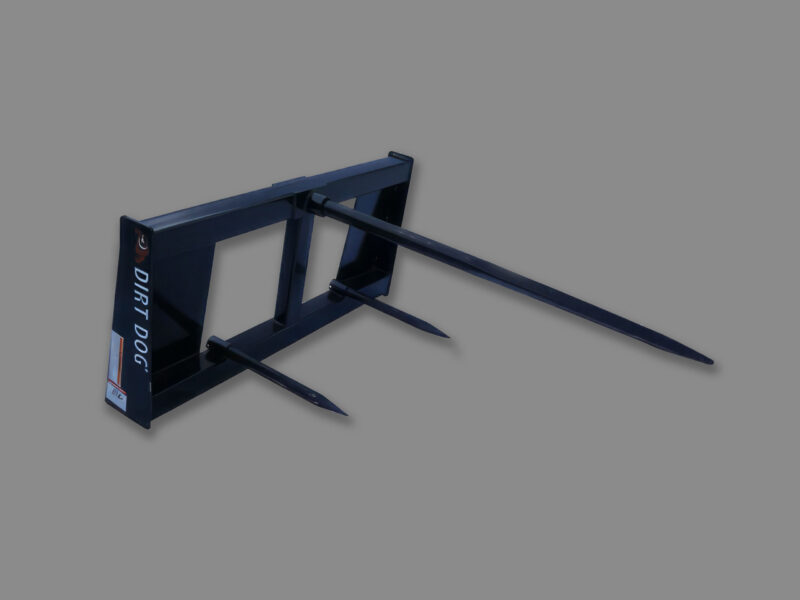

Don’t be fooled! The BSS is Dirt Dog’s Single-Prong Bale Spear for your front-end loader, but it has three spears in total. The top spear is your main spear with 42 1/2″ of length. The bottom two spears are shorter, stabilizing spears to prevent the bale from rolling.

The BSD is the double spear model with two 42 1/2″ spears and a taller frame for stabilizing the bale. Both models are available in JDQA or SSQA for your tractor’s loader. Just be sure your tractor has the lift capacity to lift a round bale, and always make sure you operate with counterweight on the rear when using your loader! Alternatively, consider Dirt Dog’s 3-Point Bale Spear, as tractor’s often have more lift capacity in the rear than in the front.

Both Bale Spear’s have this in common:

• 42 1/2″ usable spear length
• John Deere Quick Attach (for 300, 400, or 500 Series) or Skid Steer Quick Attach available
• Powder coated paint (Black for SSQA, Green for JDQA)
• Solid Tubular Construction

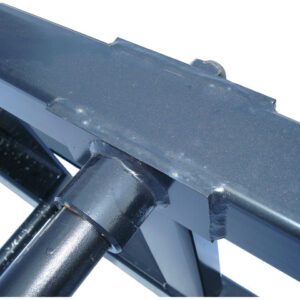

• Reinforced bushing for longevity

BSS Single-Spear Bale Spear Specs

• Spear capacity is 3500 lb at 23 1/2″ from frame
• 45 5/16″ Overall Width
• 21 3/16″ Overall Height
• 51″ Overall Depth
• 155 lb

BSD Double-Spear Bale Spear Specs

• Each spear capacity is 3500 lb at 23 1/2″ from frame
• 45 5/16″ Overall Width
• 30″ Overall Height
• 51″ Overall Depth
• 200 lb

Shop the 3-Point Bale Spear here.
