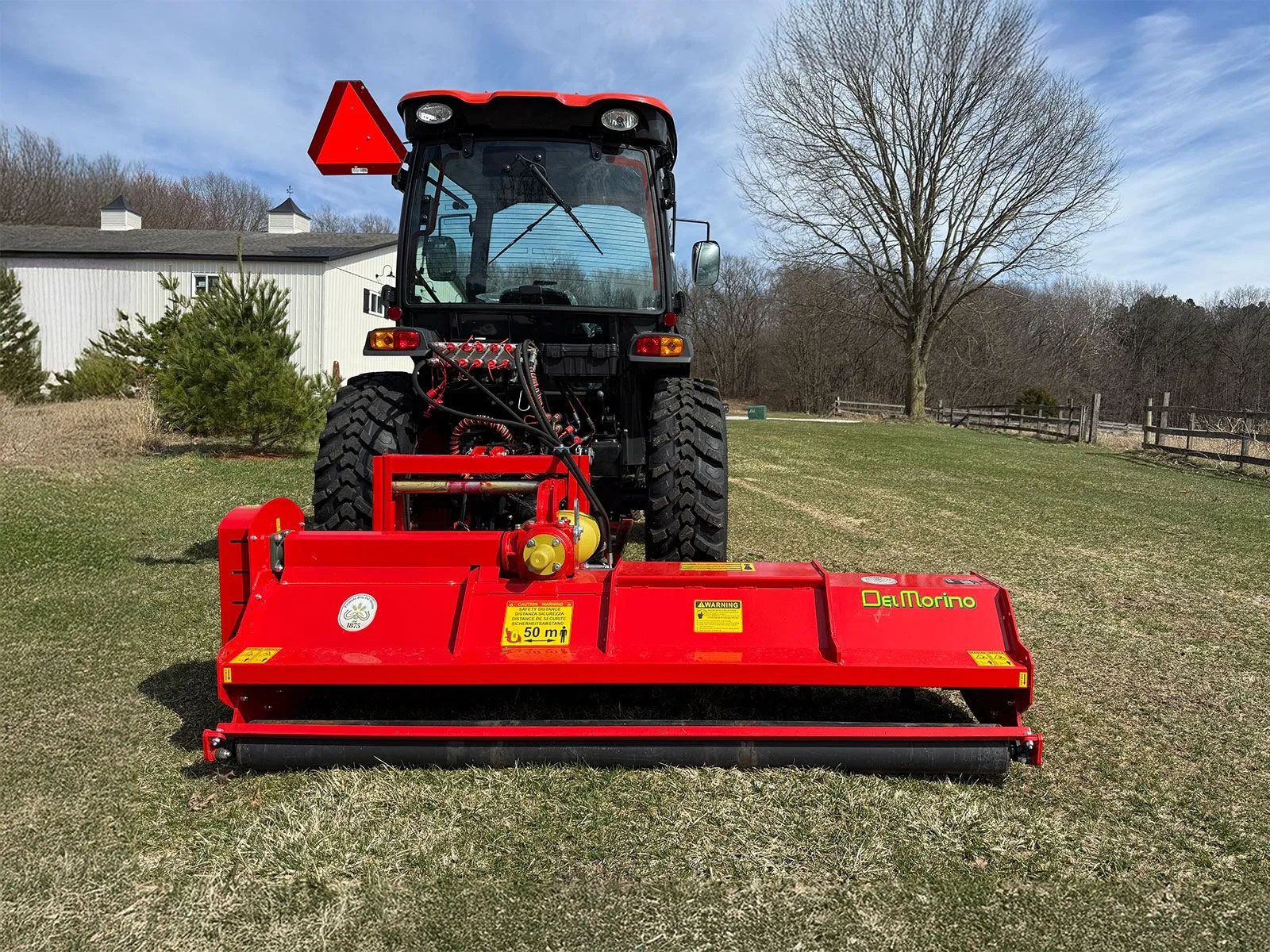

Side-Shift Flail Mower The Flipper Series by Del Morino

Every company has some fixed points that define its success and the FLIPPER is one of them. It is one of the best selling models thanks to its design, reliability and practicality. It is suitable for tractors from 15 to 70 HP.

DEL MORINO FLIPPER Side-shift FLAIL MOWER HIGHLIGHTS

• 3-Pt Hitch, Cat 1 and 2
• Cast Iron Gearbox 540RPM w/ Free Wheel and Pass Thru Shaft
• Standard 3 Belt Drive Transmission w/ Screw Adjustable Tensioner
• Rotor with “Y” Blades or Hammer Blades*
• Adjustable Rear Roller
• Adjustable Skids
• Mounting Points for Side Shift
• Universal PTO Shaft
• Optional Hydraulic Kit for Side-Shift
• 15 to 70 hp at the PTO

Del Morino Flipper 50″

• 52″ Cut Width
• 62″ Overall Width
• 562 lb
• Uses 40 Y-Blades or 20 Hammer Blades

Del Morino Flipper 62″

• 62″ Cut Width
• 72″ Overall Width
• 635 lb
• Uses 48 Y-Blades or 24 Hammer Blades

Del Morino Flipper 72″

• 72″ Cut Width
• 82″ Overall Width
• 714 lb
• Uses 56 Y-Blades or 28 Hammer Blades

Del Morino Flipper 85″

• 85″ Cut Width
• 92″ Overall Width
• 966 lb
• Uses 64 Y-Blades or 32 Hammer Blades

*Y blades for universal use—grass.
*Hammers for specific use—raw land, brambles, pruning.
