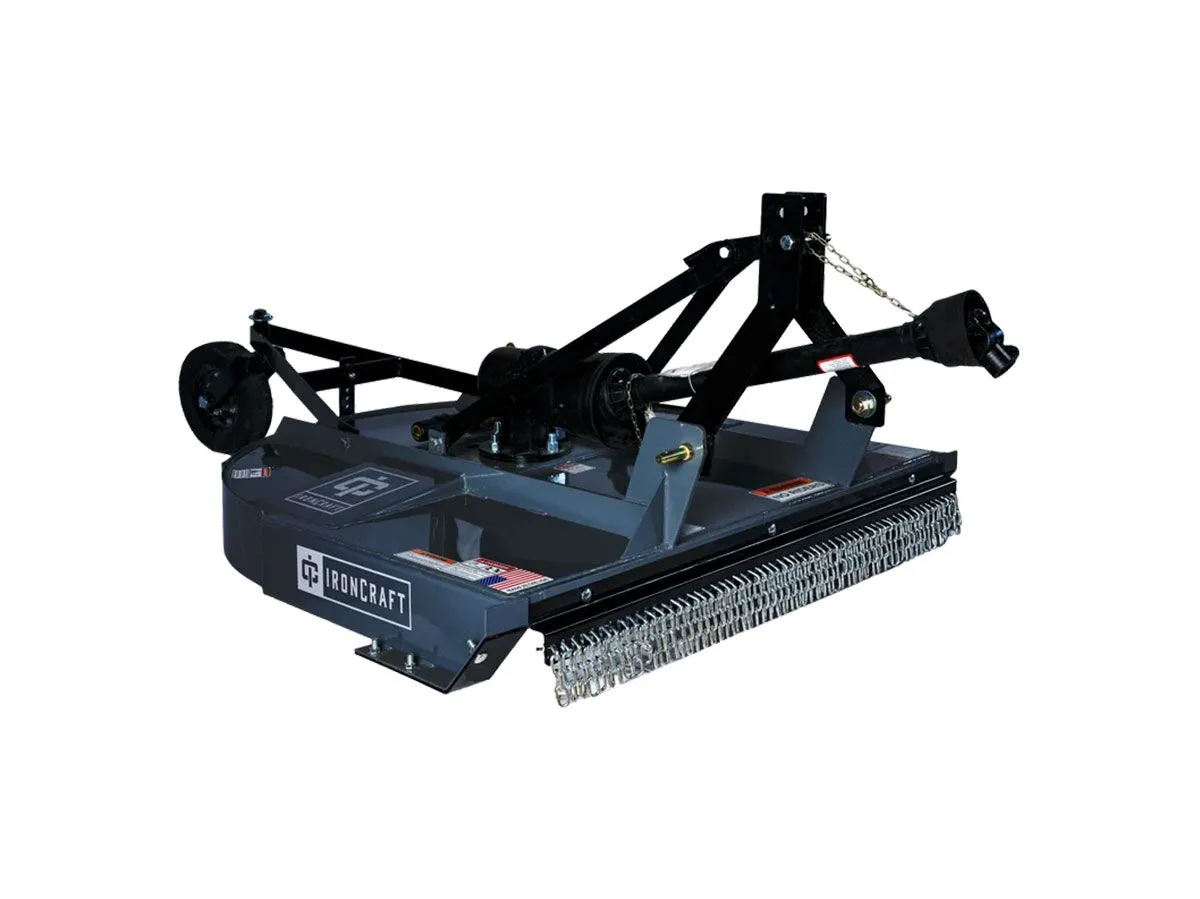

IRONCRAFT Heavy DUTY Roundback BRUSH HOG DETAILS
These cutters use a single spindle with two free-swinging blades, which reduce the shock of impact when a stationary object is contacted. A slip clutch, if equipped, protects the gearbox and driveline from damage.
Standard equipment includes driveline shields and clutch shields.
Standard Features
- 10 Gauge Steel Decking
- Cat I 3-Pt Compatible
- Quick Hitch Compatible
- 2 1/2–3″ Dia Cut Capacity
- Slip Clutch
- Rubber Guard
- 100 hp Gearbox
- Available Widths: 60″, 72″, and 84″
- For Tractors with as low as 35 hp at the PTO
Optional Features
- Chain Guard
- Dual Tail Wheels on 72″ Model
IRONCRAFT Heavy DUTY Roundback BRUSH HOG SPECS
| Model | 1505 | 1506 | 1507 |
| Description | 5′ Heavy Duty Roundback Cutter | 6′ Heavy Duty Roundback Cutter |
7′ Heavy Duty Roundback Cutter
|
| RPM | 540 | 540 | 540 |
| HP Required | 35 – 80 PTO | 40 – 80 PTO | 55 – 95 PTO |
| Working Width | 60″ | 72″ | 84″ |
| Weight | 745 lb | 900 lb | 1305 lb |
| Cutting Capacity | 2-1/2″ | 2-1/2″ | 3″ |
| Deck Thickness | 10 GA | 10 GA | 10 GA |
| Side Bands | 7″ | 7″ | 8″ |
| PTO Drive Shaft | Series 4 | Series 4 | Series 6 |
| Blade Holder | 1/2″ Plate | 1/2″ Plate | 1/2″ Plate |
| Gearbox Rating | 100 HP | 100 HP | 150 HP |
| Wheel Type | Laminated | Laminated | Laminated |
| Hub Type | Greaseable | Greaseable | Greaseable |
| Hitch | Cat 1 | Cat 1 | Cat 2 |
| Gearbox Warranty | 5 year limited | 5 year limited |
5 year limited
|
| Guarding Options | Rubber Guards or Chains | Rubber Guards or Chains |
Rubber Guards or Chains
|
