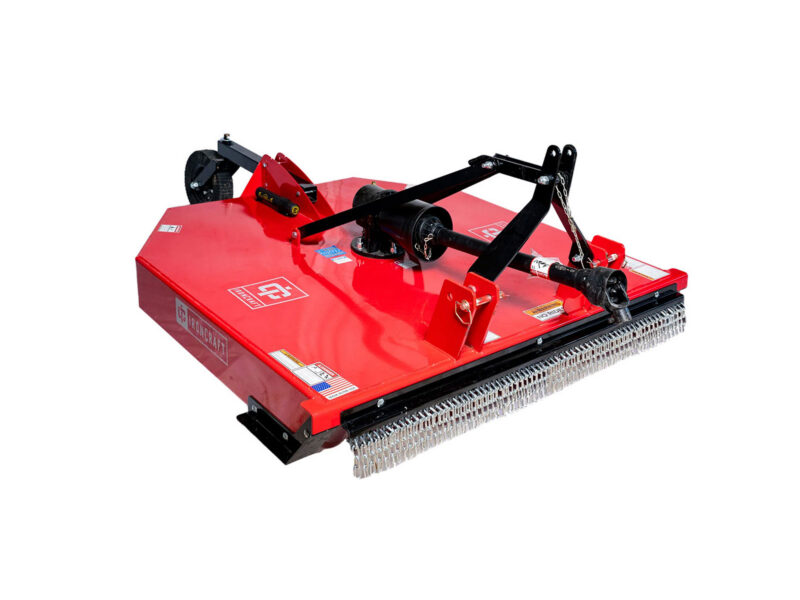

IronCraft Medium Duty Brush Hog Details
These cutters use a single spindle with two free-swinging blades, which reduce the shock of impact when a stationary object is contacted. Standard equipment includes driveline shields and clutch shields.
Standard Features
- 10 Gauge Steel Decking
- Cat I 3-Pt Compatible
- Quick Hitch Compatible
- 2″ Dia Cut Capacity
- Slip Clutch Protection
- Rubber Guard
- 100 hp Gearbox
- Single Tail Wheel
- Available Widths: 60″ and 72″
- For Tractors with 32–90 hp at the PTO
Optional Features
- Chain Guard
- Dual Tail Wheels
IronCraft Medium Duty Brush Hog Specs
| Model | 305 | 306 2 TW | 306 1 TW |
| Description | 5′ Smooth Top Cutter | 6′ Smooth Top Cutter – Dual Tailwheel |
6′ Smooth Top Cutter – Single Tailwheel
|
| RPM | 540 | 540 | 540 |
| HP Required | 32 – 90 PTO | 47 – 90 PTO | 45 – 90 PTO |
| Working Width | 60″ | 72″ | 72″ |
| Weight | 640 lb | 740 lb | 740 lb |
| Cutting Capacity | 2″ | 2″ | 2″ |
| Deck Thickness | 10 GA | 10 GA | 10 GA |
| Side Bands | 8-1/2″ | 8-1/2″ | 8-1/2″ |
| PTO Drive Shaft | Series 4 | Series 4 | Series 4 |
| Blade Holder | 1/2″ Plate | 1/2″ Plate | 1/2″ Plate |
| Gearbox Rating | 100 HP | 100 HP | 100 HP |
| Wheel Type | 15″ Laminated | Dual 15″ Laminated | 15″ Laminated |
| Hub Type | Greaseable | Greaseable | Greaseable |
| Hitch | Cat 1 | Cat 1 | Cat 1 |
| Gearbox Warranty | 5 year limited | 5 year limited |
5 year limited
|
| Guarding Options | Rubber Guards or Chains | Rubber Guards or Chains |
Rubber Guards or Chains
|
