Description

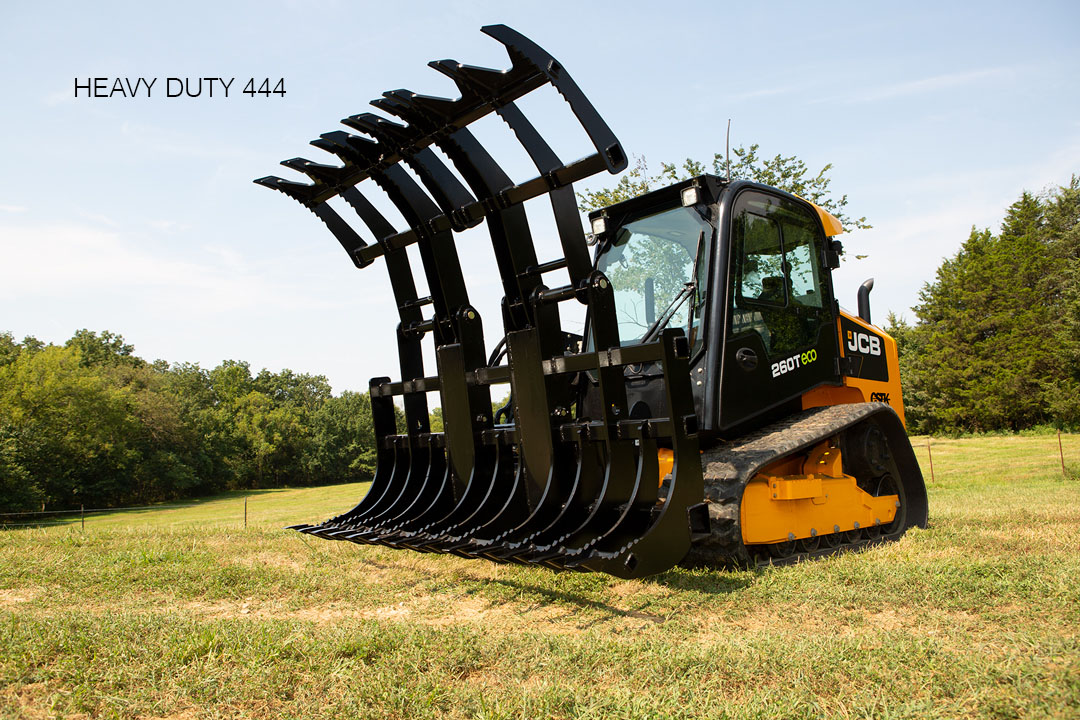

Heavy Duty 444 Grapple Rake details
The “Heavy Duty” 444 Grapple Rake is our strongest grapple rake. It can handle everyday commercial use. The rake is made of 3/4″ GR50 High Strength Steel. This rake is designed to fit large tractors (100hp and up) and skid steers (2700lb and up lift capacity). The 73″ opening allows for extra large load capacities and can easily handle a large bale of hay. The subsoil points extend the life of the rake tines. Skidsteer Quick Attach brackets and couplers are all included.
- Large Grapple Opening of 73″
- 11 Rake Tines on the 72″ and 13 Rake Tines on the 85″
- 6″ Spacing of Rake Tines
- Concealed Cylinders
- Fully Plumbed with Hose Protection
- Greased Pivot Points

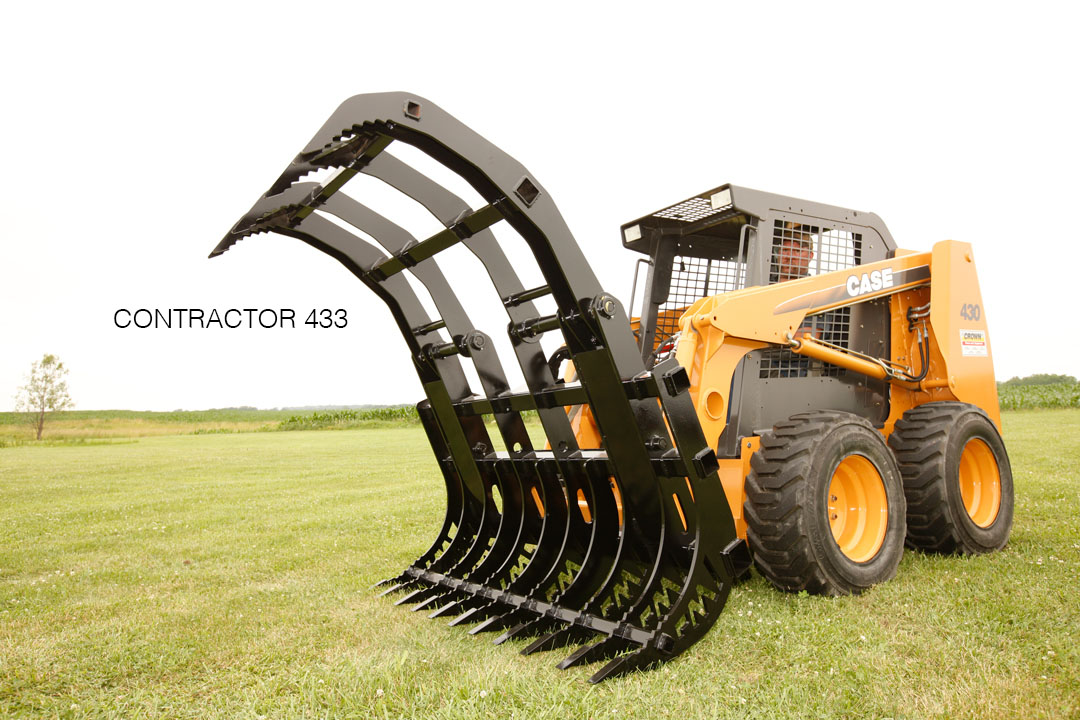

CONTRACTOR 433 RAKE GRAPPLE details
Very Strong & Durable. Extra Wide Opening 73″!
The “Contractor” 433 Grapple Rake is very well designed and can handle the everyday heavy use. The rake is made of 5/8″ GR50 High Strength Steel. The subsoil points increase the life of the rake tines. This rake is designed to fit larger tractors and skid steers. It is available with single or double grapples in 72″ and 85″ widths. The extra wide opening (73″) will even accept a large round bale of hay. Hoses & couplers are included.
- Large Grapple Opening of 73″
- 11 Rake Tines on the 72″ and 13 Rake Tines on the 85″
- 6″ Spacing of Rake Tines
- 5/8″ GR50 High Strength Steel Rake Material
- Concealed Cylinders
- Fully Plumbed with Hose Protection
- Greased Pivot Points
- Sub Soil Points

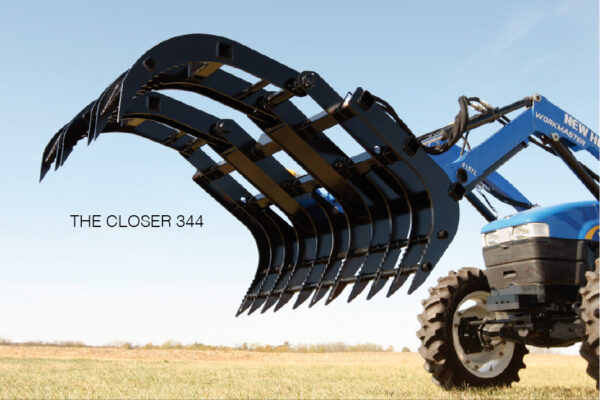

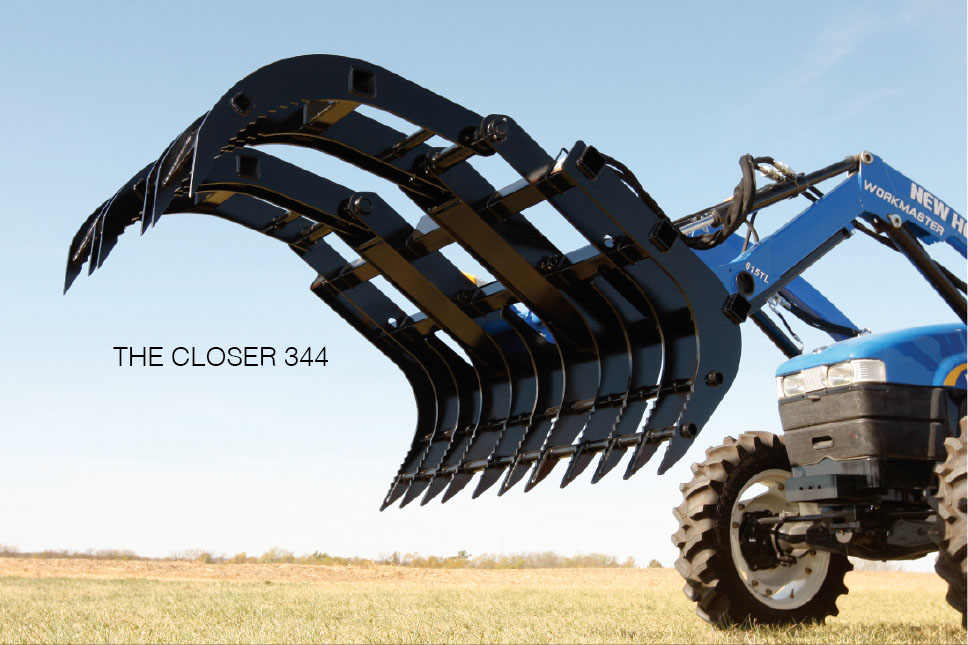

THE CLOSER 344 RAKE GRAPPLE details
The “ORIGINAL” & Most Durable Grapple In It’s Class!
“The Closer” 344 Grapple Rake fits the medium size tractor and skid steer (2000lb to 2500lb lift capacity). It is built exceptionally strong for its size with many features shown below. “The Closer” is available in Single or Double grapples in a 72″ width. Skidsteer Quick Attach Brackets and couplers are all included.
- Large Grapple Opening of 65″
- 11 Rake Tines
- 6″ Spacing of Rake Tines
- 1/2″ Rake Material
- Concealed Cylinders
- Fully Plumbed with Hose Protection
- Greased Pivot Points

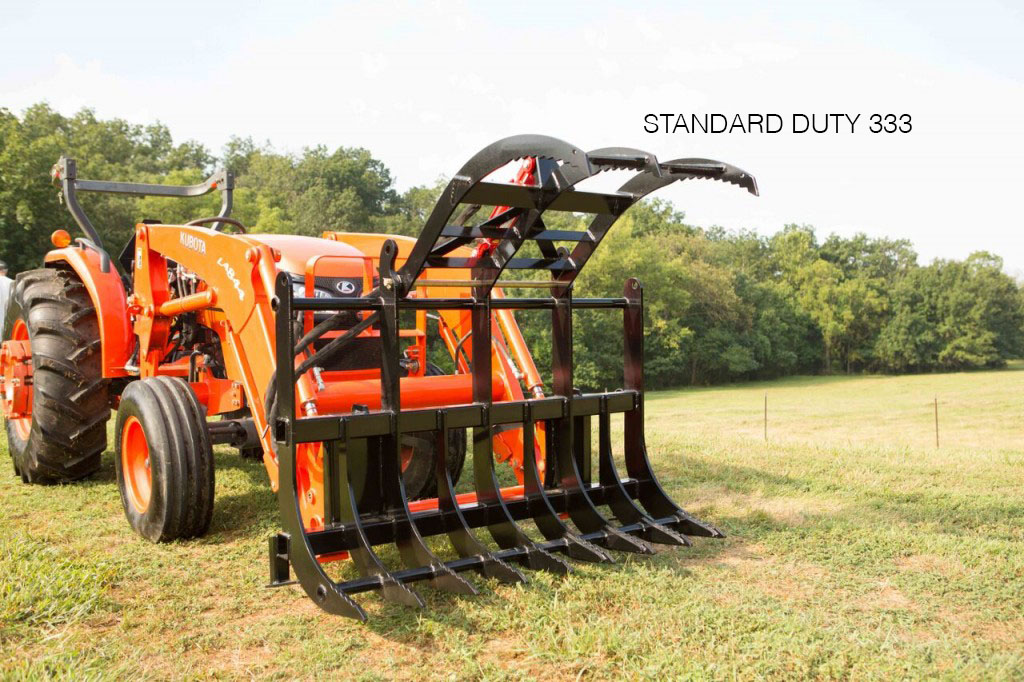

STANDARD 333 GRAPPLE RAKE DETAILS
The Perfect Grapple Rake for Small & Medium Sized Equipment!
The “Standard Duty” 333 Grapple Rake is ideally made for utility and compact tractors where weight may be a consideration. It features a wide 50″ opening to allow for large material capacity. The rake tines are reinforced with rake supports for added strength. Cylinder(s) are included and a hose kit is standard for the double grapple as well as cylinder guards. Skidsteer Quick Attach brackets and couplers are all included.
- 50″ Grapple Opening
- 9 Rake Tines on 60″ and 11 Rake Tines on the 72″
- 6″ Spacing of Tines
- 1/2″ Rake Material
