Purchase this item and get Description

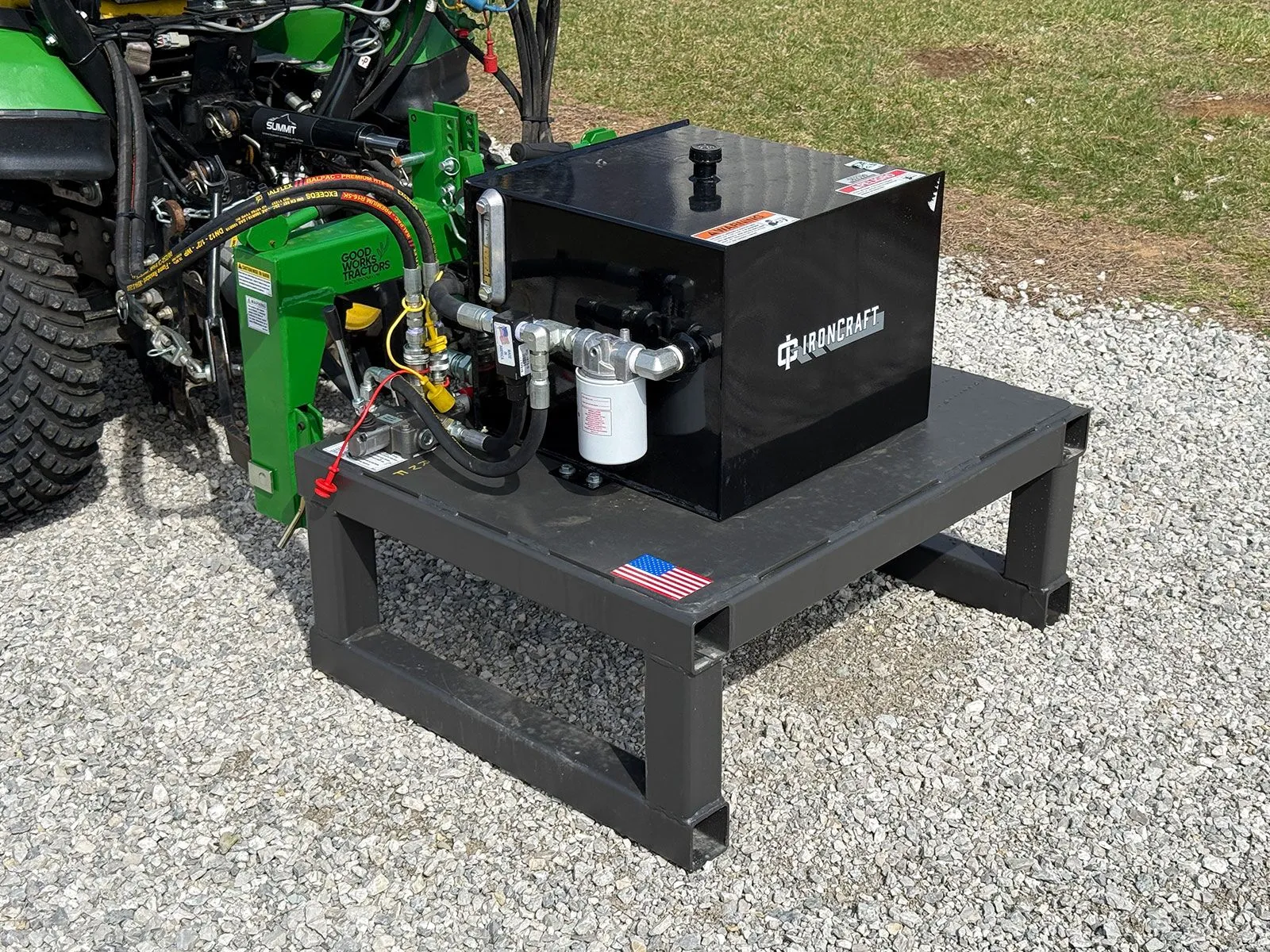

IronCraft Auxiliary PTO Hydraulic Kit Features
The kit comes with a 20-gallon reservoir tank that ensures enough hydraulic fluid for extended use. The oil sight and temperature gauge on the reservoir make it easy to monitor the fluid levels and temperature, ensuring that the system is always running at optimal performance. Available in 14 gpm (11.4 gpm fixed) and 21 gpm (21.2 gpm fixed) variations.
Optimized for brush cutters and snowblowers.
Highlights
- Oil sight and temperature gauge on reservoir
- Pressure relief for hydraulic system protection
- Heavy-duty frame helps act as ballast
- 20 Gallon reservoir tank
- Pumps put out either 11.4 gpm or 21.2 gpm of constant flow (non-adjustable)
- 400 lb when filled with hydraulic fluid
- 2,500 psi max
- Quick Hitch Compatible
| Product Family | Auxiliary PTO Hydraulic Kit |
| Product | IC-AUXKIT |
| Flow Range | 11.4 gpm or 21.2 gpm |
| Weight | 400 lb (when filled) |
| Reservoir Tank | 20 Gallon |
Details on the Larger Pump Option
- 21 gpm Powerful Pump: This hydraulic pump features a 540 RPM max rotating speed, 2500 PSI max operating pressure along with a 21.2 gpm high flow rate.
- 1″ Inlet & 1/2″ NPT Outlet: The tractor pump is equipped with a standard SAE 12 outlet port and a SAE 16 on the inlet port. The standard size ensures a perfect fit with no fluid loss.
- The high-strength cast iron casing with power-coated finish enables the pump to resist impact, rust, and high pressure. This sturdy structure can prevent leaks and ensure a prolonged service life.
- Simple Installation: This pump stands out with a simple design, and it allows for a direct and quick installation.
- Wide Application: The hydraulic pump is excellent for tractors, log splitters, press, machine tools, and power units for snowplows. It has outstanding compatibility with many OEMs like Speeco, Huskee, Champion, and many more.
Specs
- Displacement: 9.76 cu in / revolution
- Pressure: 2500 PSI max
- Pump Type: Gear
- Speed: 540 RPM
- Flow: 21.2 GPM at 540 RPM
- Mount: 2 bolt side for torque arm
- Shaft: 1-3/8″ 6 tooth female spline
- Inlet Port: SAE 16
- Outlet Port: SAE 12
- Size: 6-3/8″ x 6-3/4″ x 8-3/4″
- Packing weight: 45 lb
Lifetime Warranty
Increase the standard manufacturer’s warranty to GWT’s Lifetime Warranty.
What is covered
Your GWT Lifetime Warranty covers issues stemming from the craftsmanship of the product, like broken welds, torn steel, or improper fit. Tractor attachments are generally designed to be used in harsh environments, so normal wear-and-tear is not covered (things like lost paint or chipped paint, scratches, dents, or bent teeth).
We will repair or replace, at our discretion, your attachment/product under the Lifetime Warranty, if purchased.
What isn’t covered
Any shipping necessary for repair or replacement, as well as transportation costs are not covered under the factory warranty. Lost time and down time are not covered. Replacement parts are covered, but not labor costs.
If damage occurs from improper use (a use other than what the product is marketed for), the warranty is void. Damage caused to your tractor while using an attachment will not be covered.
Your warranty is non-transferable, meaning it exists as long as you’re the owner and operator of the product.
Reviews
There are no reviews yet.
