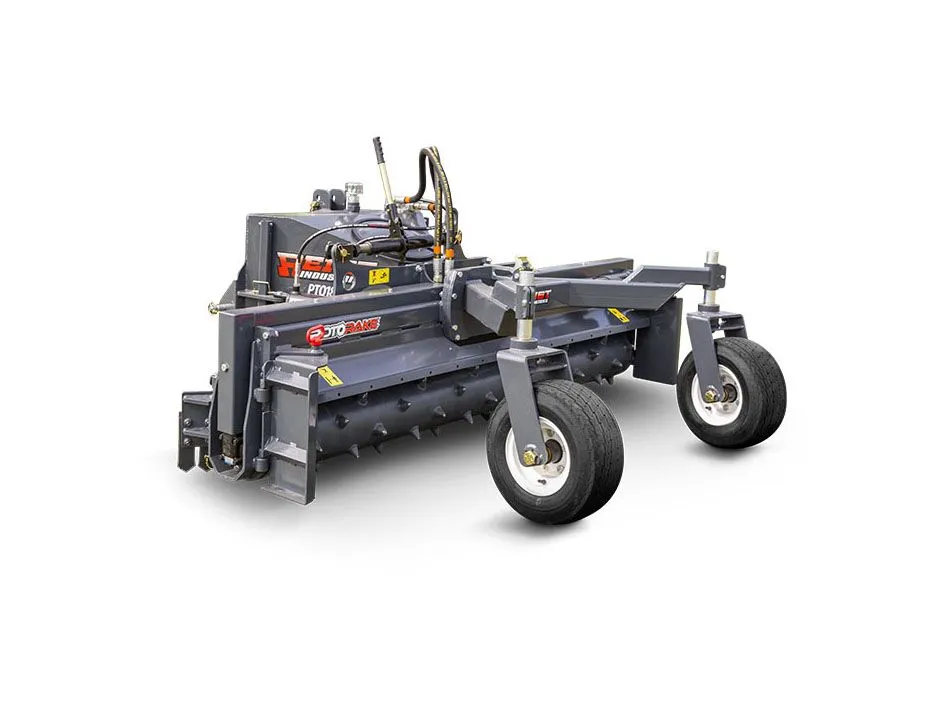

Reist ROTORAKE OVERVIEW
The RotoRake’s (Hyd) bi-directional rotor allows for operation in both directions. Features a 25 degree angle and 28 degree tilt for easy swaling and ditching. Oscillating gauge wheels lock in level position for the (PTO) three point hitch use. Dual-motor design delivers 40% more torque and eliminates outside bearings and chains.
The RotoRake also features a floating rotor design with road-grade mini carbide teeth, ditch cutters and side shields. The RotoRake can be used on a three point hitch or skid steer hitch systems.
Power Take-Off for your RotoRake unit drives a pump which drives the rotor motors.
- Features a 25 degree angle and 28 degree tilt for easy swaling and ditching
- Oscillating gauge wheels lock in level position for the (PTO) three point hitch use
- Dual-motor design delivers 40% more torque and eliminates outside bearings and chains
The PTO RotoRake from Reist Industries allows you to connect our reliable power rake to your tractor’s PTO system. Utilizing the same features and options as the skidsteer model, the PTO model also features oscillating guage wheels which lock in the level position for PTO use.
PTO ROTORAKE OPTIONS
FOAM FILLED TIRES
- Uses the same tire as air filled
- Weighs 39lbs (24 lbs heavier than air filled)
TILT CYLINDER & HOSE KIT
- Used on tractor remotes
- Requires a second set of remotes
SIDE CUTTERS
- Pin on front or rear depending on desired direction of travel
ROTORAKE RR60PTO18G
- 60″ max working width
- 55″ working width when angled 25 degrees
- 1,350lb base weight
- Cat 1 and Cat 2 3-Pt Hitch Compatible
- Manual tilt, hydraulic angle standard
ROTORAKE RR72PTO18G
- 6072″ max working width
- 65″ working width when angled 25 degrees
- 1,420lb base weight
- Cat 1 and Cat 2 3-Pt Hitch Compatible
- Manual tilt, hydraulic angle standard
ROTORAKE RR84PTO18G
- 84″ max working width
- 76″ working width when angled 25 degrees
- 1,500lb base weight
- Cat 1 and Cat 2 3-Pt Hitch Compatible
- Manual tilt, hydraulic angle standard
