Self-Powered 20-Ton Horizontal / Vertical Log-Splitter Wallenstein

Wallenstein 20 Ton SELF-Powered Horizontal / Vertical Log-Splitters

These 5 Series Self-Powered Horizontal / Vertical Log Splitters from Canadian manufacturer Wallenstein are towable with a 2″ ball hitch, but are self-supporting too.

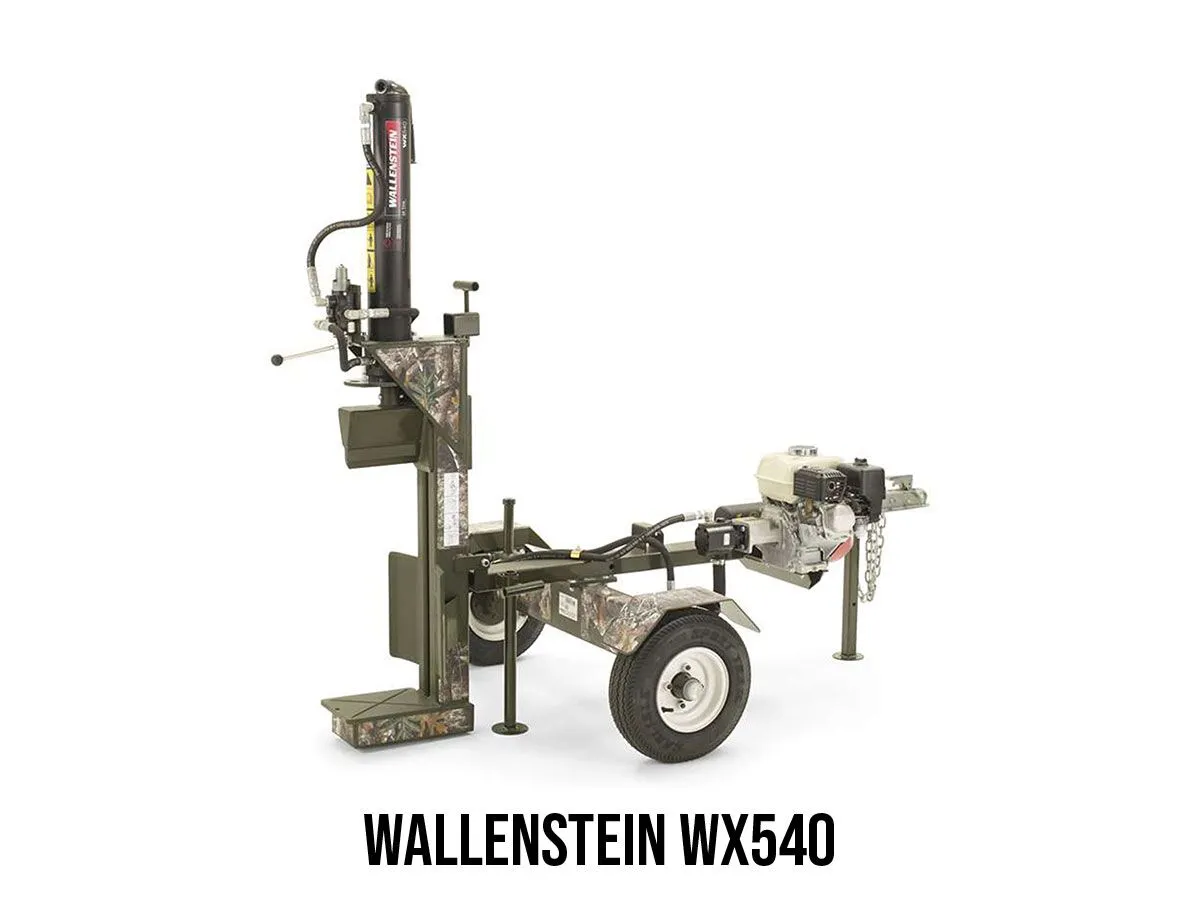

And more interestingly, they can split in the horizontal position, or you can pull a pin and set them up to split vertically, eliminating the need to lift logs up to the split bed.

Three models are available in this series: the WX530, WX540, and the WX540L.

All models have a 20 Ton Split Capacity, 24″ Split Opening, with a 6.62s cycle time. The difference between the WX540 and WX540L is that the L is Highway Towable with its hitch, safety chains, highway tires, and full trailer lighting. Lighting kits are factory installed, and equipped with brake lights and turn signals. They use a standard 4-pin connector.

The WX530 is powered by a 160cc Honda engine, while the WX540, WX540L are powered by a 6.5 hp (203cc) Vanguard engine.

A 12″ hitch extension is required to pull behind an ATV.

A 2-Way Wide Wedge is included that pops the log in a short distance. A 4-Way Wedge is an option.

To return the cylinder, just pull back on the lever and it will return to its starting position automatically, and then pop into neutral.

An optional stroke limiter is available to stop the cylinder from fully retracting, reducing your cycle time by almost 50% (for use on shorter logs).

An optional clamp on side-shelf is available to catch your split logs.

There is also an All-Weather Cover available to protect your splitter from the elements.

All in all this is a well thought out, compact, log splitter.

Wallenstein WX530 Log Splitter Details

• 20 Ton Split Capacity
• 24″ Split Opening
• Powered by a 160cc Honda Engine
• 6.62s Cycle Time (dependent on hydraulic flow)
• 470 lb
• 80 x 48 x 40 (LxWxH)
• 24″ Bed Height
• Can Split Horizontally or Vertically

Wallenstein WX540 Log Splitter Details

• 20 Ton Split Capacity
• 24″ Split Opening
• Powered by a 6.5 hp Vanguard Engine
• 6.62s Cycle Time (dependent on hydraulic flow)
• 470 lb
• 80 x 48 x 40 (LxWxH)
• 24″ Bed Height
• Can Split Horizontally or Vertically

Wallenstein WX540L Log Splitter Details

The WX540L has all the features of the WX540 but is also Highway Towable with a factory installed light kit and a 4-pin electric connection, as well as safety chains, and highway rated tires.

How to Choose the Right Log Splitter:

There are 4 main choices to consider:

1) TYPE: Do you require an engine-powered model or would you prefer to power it off your tractor or skidsteer?

2) POWER: Most wood can be split by a 20-ton splitter. However, hardwoods with gnarled, twisted grains, such as those that often grow up along a fence line may require a splitter with a higher splitting force.

3) ORIENTATION: Vertical 3-point hitch models, inverted skidsteer models and horizontal-vertical woodsplitters are very helpful when the wood being split is too large or heavy to lift onto a log bed. The Log Lifter fitted to some of the WX900 series models is also helpful in this regard.

4) SPLIT LENGTH: Do you require 24”, 36” or 48” lengths of split wood? If you are interested in a trailer model, consider how much wood you intend to spilt, is it for commercial or rental use, does towed equipment require lights and licensing where you live. If available in your chosen model, a “T”, or Tall version of the splitter can raise the working height to a more comfortable level. The horizontal / vertical splitters can also help in this regard.
