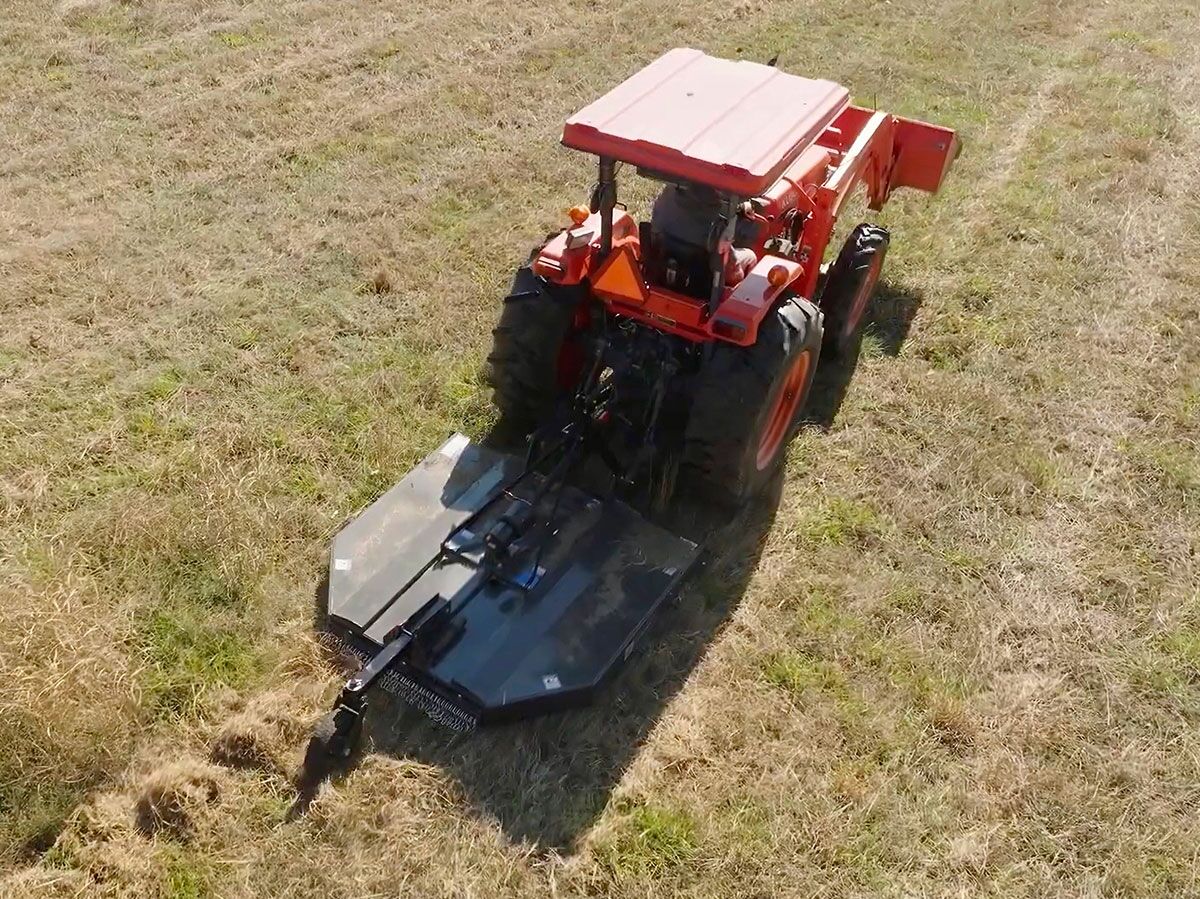

IronCraft Standard Duty Brush Hog Details
These cutters use a single spindle with two free-swinging blades, which reduce the shock of impact when a stationary object is contacted. A shear bolt through the input shaft or a slip clutch, if equipped, protects the gearbox and driveline from damage. Standard equipment includes driveline shields and clutch shields.
Standard Features
- 11 Gauge Steel Decking
- Cat I 3-Pt Compatible
- Quick Hitch Compatible
- 1 1/2″ Dia Cut Capacity
- Stump Jumper
- Shear Bolt
- Rubber Guard
- 55 hp Gearbox
- Available Widths: 48″, 60″, and 72″
- For Tractors with as low as 15 hp at the PTO
Optional Features
- Slip Clutch Protection
- Chain Guard
IronCraft Standard Duty Brush Hog Specs
| Model | 1204 | 1205 | 1206 |
| Description | 4′ Standard Duty Cutter | 5′ Standard Duty Cutter |
6′ Standard Duty Cutter
|
| RPM | 540 | 540 | 540 |
| HP Required | 15-45 PTO | 25-45 PTO | 40-65 PTO |
| Working Width | 48″ | 60″ | 72″ |
| Weight (lb) | 538 lb | 596 lb | 726 lb |
| Cutting Capacity | 1-1/2″ | 1-1/2″ | 1-1/2″ |
| Deck Thickness | 11 GA | 11 GA | 11 GA |
| Side Bands | 7″ | 7″ | 7″ |
| PTO Drive Shaft | Series 4 | Series 4 | Series 4 |
| Blade Holder | Pan | Pan | Pan |
| Gearbox Rating | 55 HP | 55 HP | 55 HP |
| Wheel Type | Laminated | Laminated | Laminated |
| Hub Type | Greaseable | Greaseable | Greaseable |
| Hitch | Cat 1 | Cat 1 | Cat 1 |
| Gearbox Warranty | 5 year limited | 5 year limited |
5 year limited
|
| Guarding Options | Rubber Guards or Chains | Rubber Guards or Chains |
Rubber Guards or Chains
|
