3rd Function Hydraulic Kit for Kubota Tractors by Summit Hydraulics

Visit Summit Hydraulics for current pricing.
Save 5% using the discount code below.

Need to add a new function to your Kubota Tractor? This Summit Hydraulics complete 3rd Function Kit allows you to add an electronically controlled hydraulic function, most commonly used to control a function on a:

  • Grapple (open/close)
  • Snowblower (chute, deflector, or backdrag control)
  • Snowplow (tilt/angle)

This kit uses the Power Beyond port and Return-To-Tank port. Once installed, the kit will allow you to use multiple functions (i.e. curl bucket and close grapple) in conjunction with your new one.

The included fully weatherproof Summit Hydraulics joystick handle replaces your existing handle, as it comes equipped with buttons for controlling your new third function. It easily attaches onto the existing joystick shaft with the included removable adapter bushings and adjustment screws. The joystick’s two integrated momentary push button switches allow you to open and close your cylinder with the push of a button.

*See a full list of compatible Kubota tractors and loaders below.

Order from Summit

Before you buy, read our shipping FAQ

Description

SAVE 5% WITH DISCOUNT CODE GWT

Buy direct from Summit Hydraulics and have a 3rd Function Kit shipped right to your home.

This kit uses the Power Beyond port and Return-To-Tank port. Once installed, the kit will allow you to use multiple functions (i.e. curl bucket and close grapple) in conjunction with your new one.

The included fully weatherproof Summit Hydraulics joystick handle replaces your existing handle, as it comes equipped with buttons for controlling your new third function. It easily attaches to the existing joystick shaft with the included removable adapter bushings and adjustment screws. The joystick’s two integrated momentary push button switches allow you to open and close your cylinder with the push of a button.

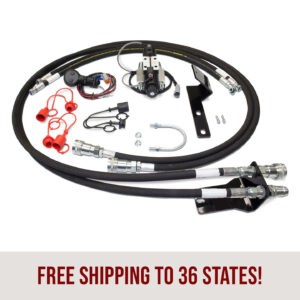

Kit Includes (may vary depending on your tractor model):

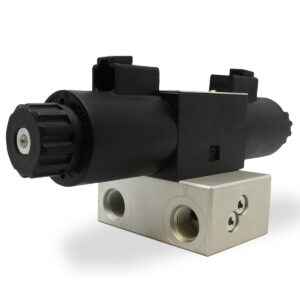

  • 12v solenoid operated valve
  • Joystick handle with 2 momentary push button switches
  • Wiring harness with weatherproof Deutsch connectors

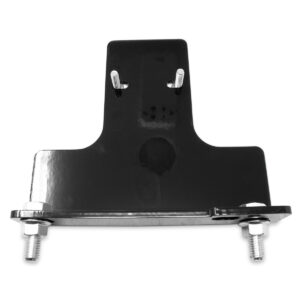

  • Valve mounting bracket (including hardware)

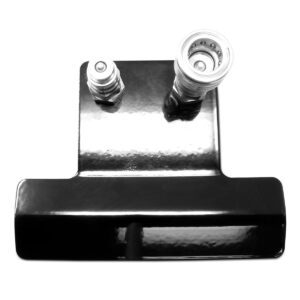

  • Quick coupler mounting bracket (including hardware)
  • 1/4” Body ISO 5675 Agricultural Female Couplers
  • 1/4” Body ISO 5675 Agricultural Male Couplers
  • Assorted dust caps
  • Hydraulic hose assemblies
  • Adapters & fittings
  • Installation instructions

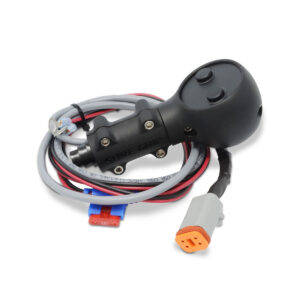

Joystick Handle:

  • Ergonomic design with two momentary push button switches
  • Fully weatherproof
  • Mounts on existing loader joystick shaft
  • Removable adapter bushings designed to fit any joystick shaft
  • Connects to 12v power source, necessary for full usage
  • Wiring Harness uses Deutsch environmentally sealed connections for great functionality in harsh weather

Valve Body Features:

  • Solid aluminum housing designed for rugged use
  • Max Operating Pressure: P = 5080 PSI, T = 3050 PSI, A & B = 5080 PSI
  • Flow Rating: 15 GPM
  • Aluminum Body
  • 3000 PSI Rated

Summit Hydraulics has 3rd Function Kits for the following Kubota tractors and loaders:

  • L2501, L3301, and L3901 tractors with LA 525, L3200, L3800, and LA 524 loaders.
  • MX4800, MX5200, and MX5800 tractors with LA1065 loader.
  • MX4700 and MX5100 tractors with LA844 loader.
  • L4600 with LA764 loader.
  • L4701 with LA765 loader.
  • BX1880, BX2380, and BX2680 tractor with the LA344 or LA344S loader.
  • BX23S tractor with LA340 or LA340S loaders.
  • B2320 tractor with LA304 loader.
  • B2620 tractor with LA364 loader.
  • B2301 & B2601 tractors with LA434 loader.
  • Kubota B3350, B2650, LX2610j, and LX3310 tractors with LA534 and LA534A loaders.
  • Kubota BX1860, BX1870, BX2360, BX2370, BX2660, BX2670 tractors.
  • Kubota B3300 with LA504 loader.
