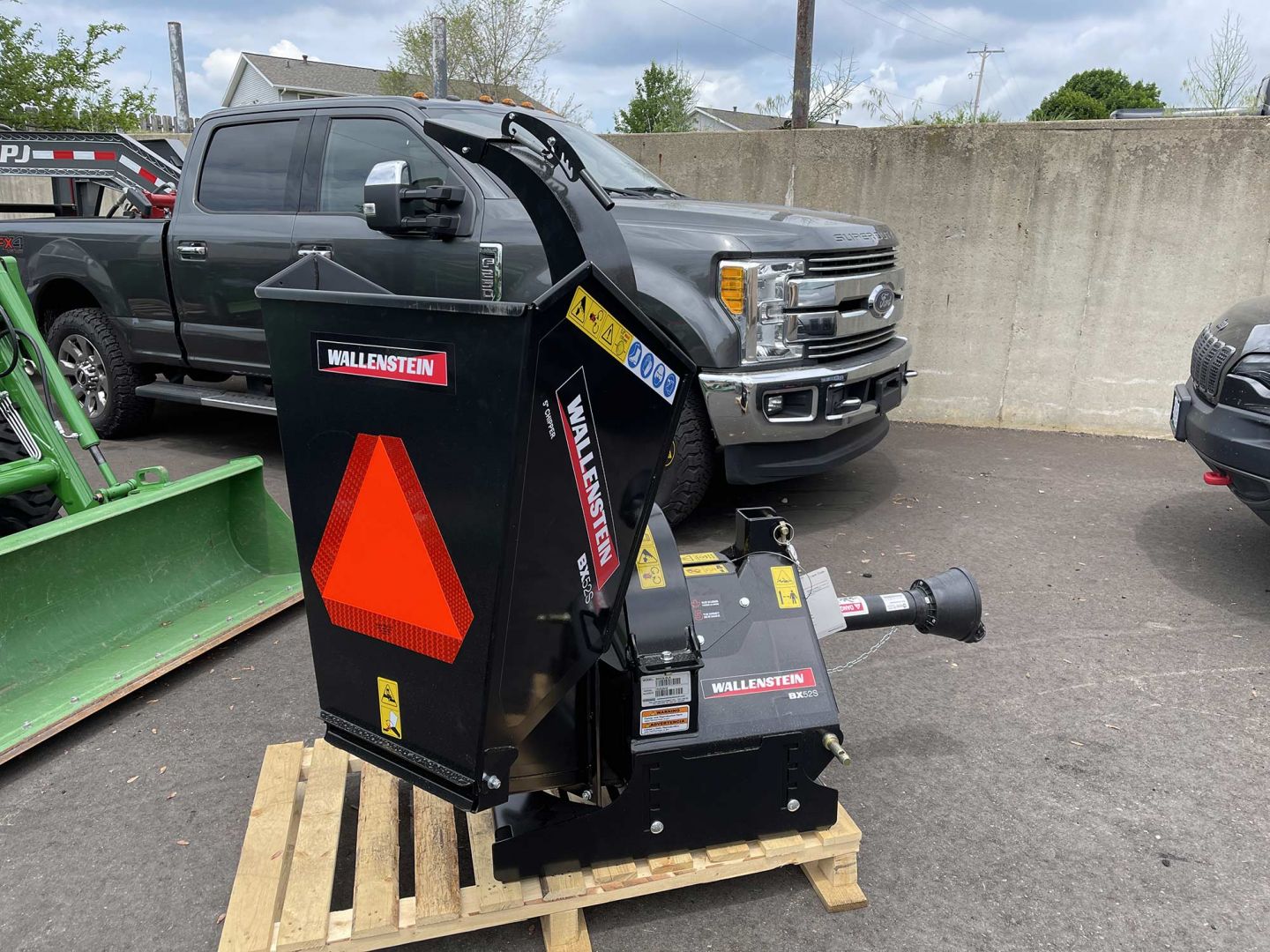

PTO Wood Chipper by Wallenstein

Wallenstein Tractor PTO Wood Chipper Description

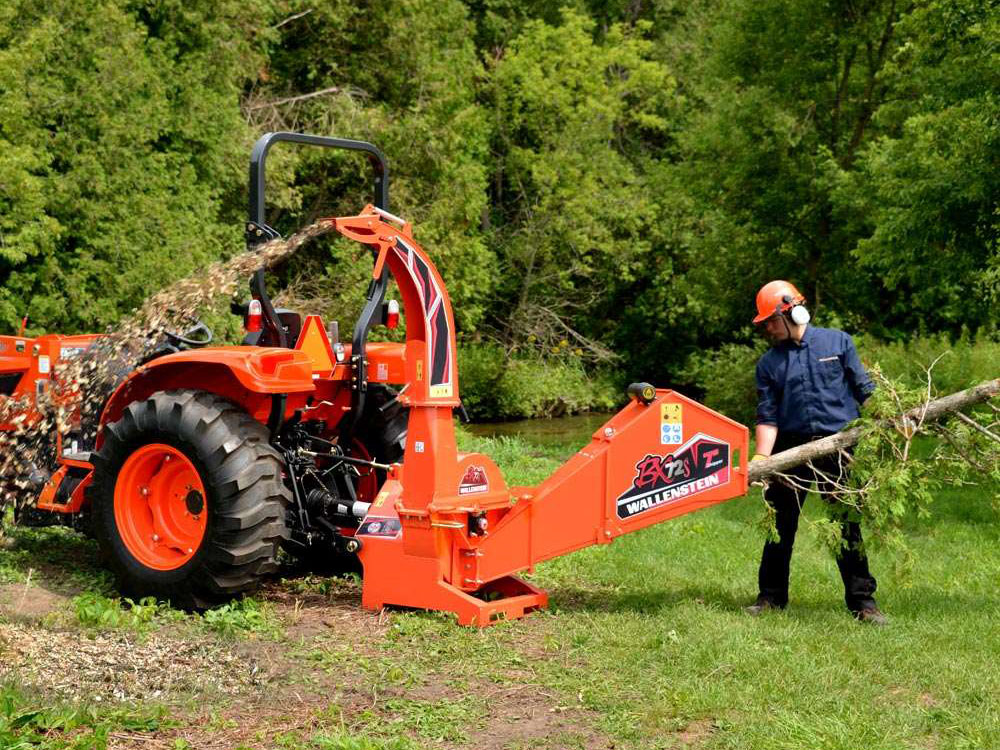

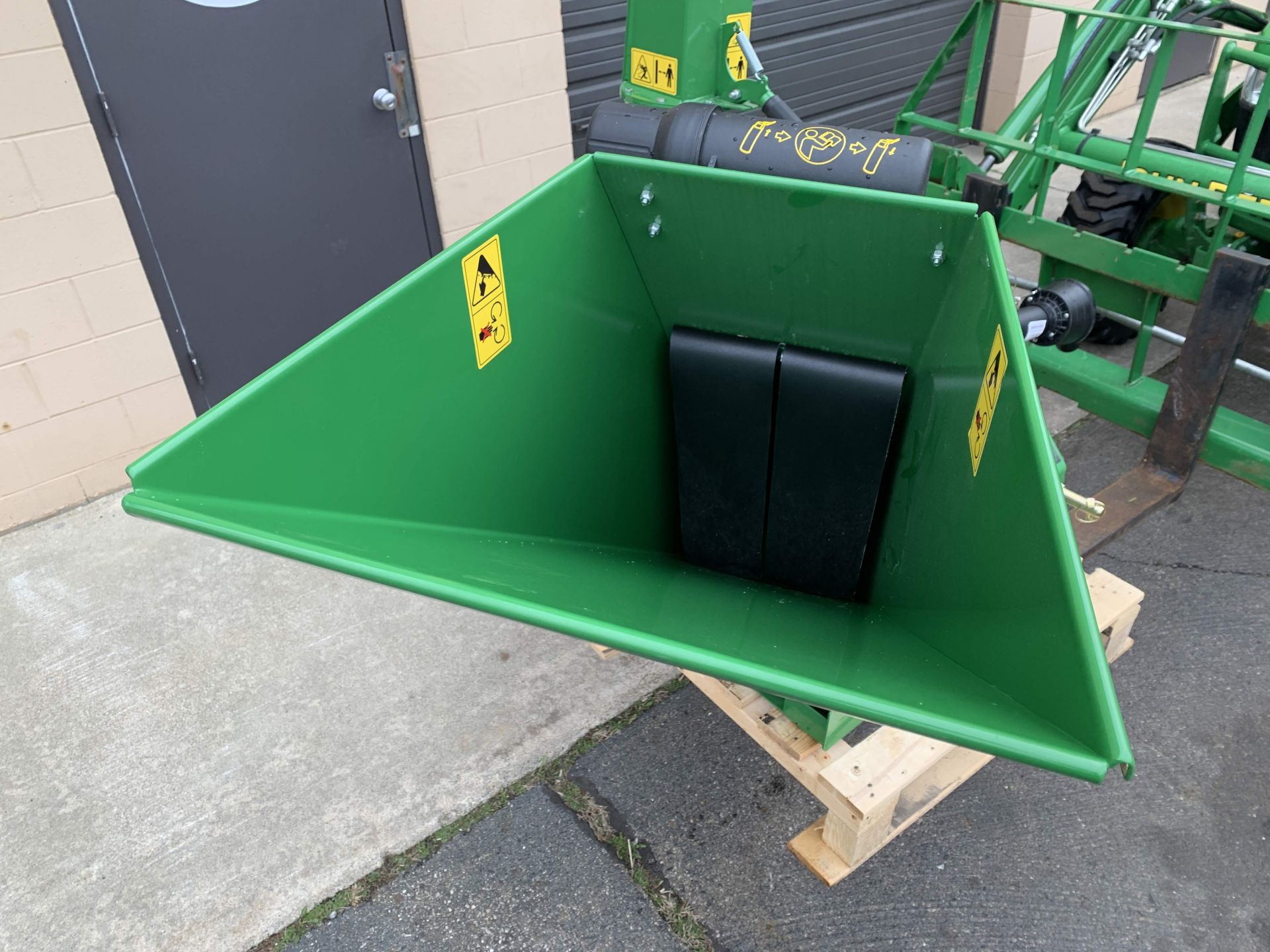

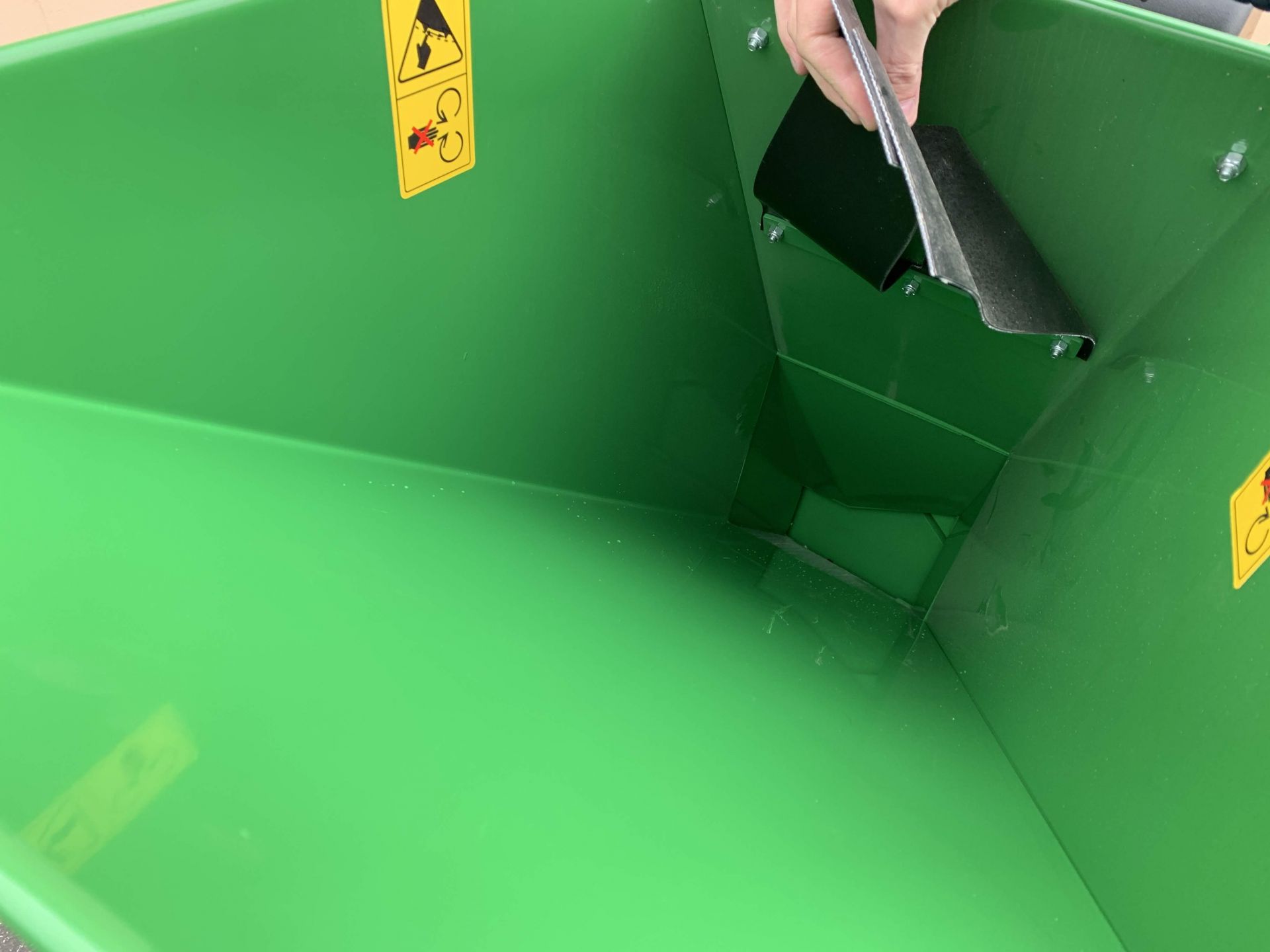

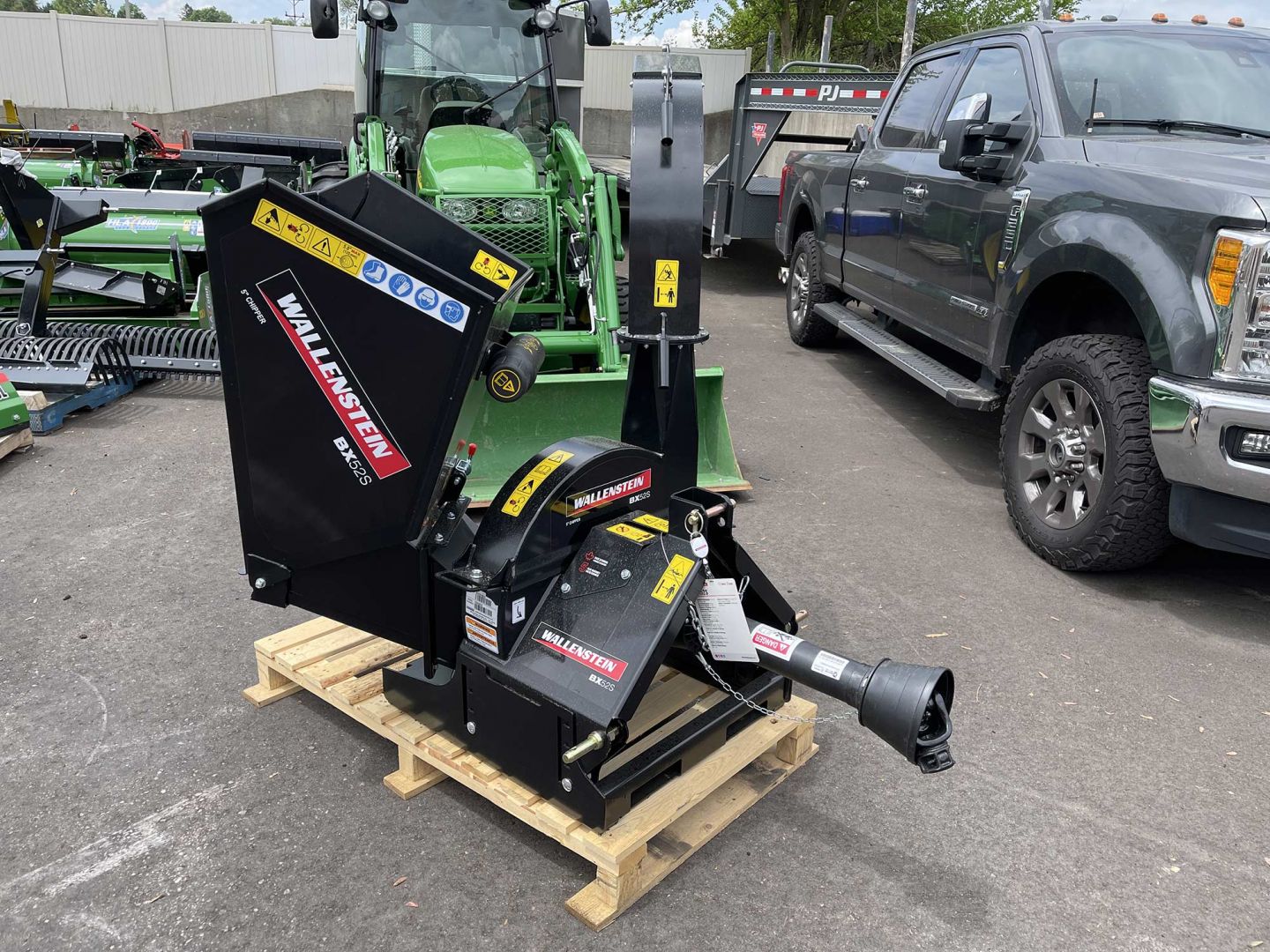

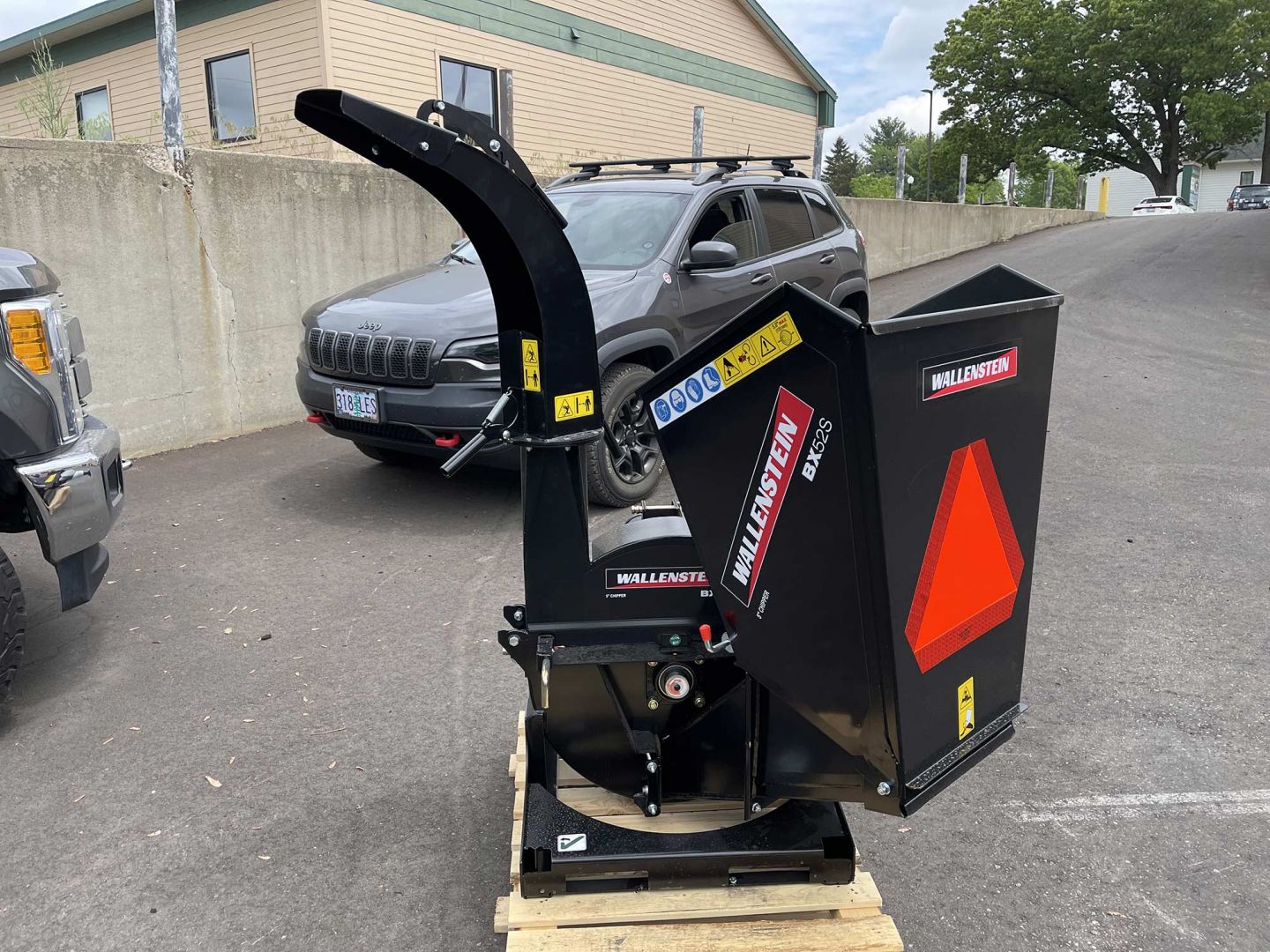

This Wallenstein PTO Wood Chipper has oversized hopper, is gravity-fed—but acts as a self-feeding chipper once a branch is started, automatically pulling in limbs and branches up to 3.5” (BX36S) or even 10″ (BX102s) in diameter. Chipping action is powered directly from your tractor’s PTO, and the adjustable base allows you to set the height to fit your tractor as the chipper connects to your Cat I or II 3-Pt Hitch or Quick Hitch.

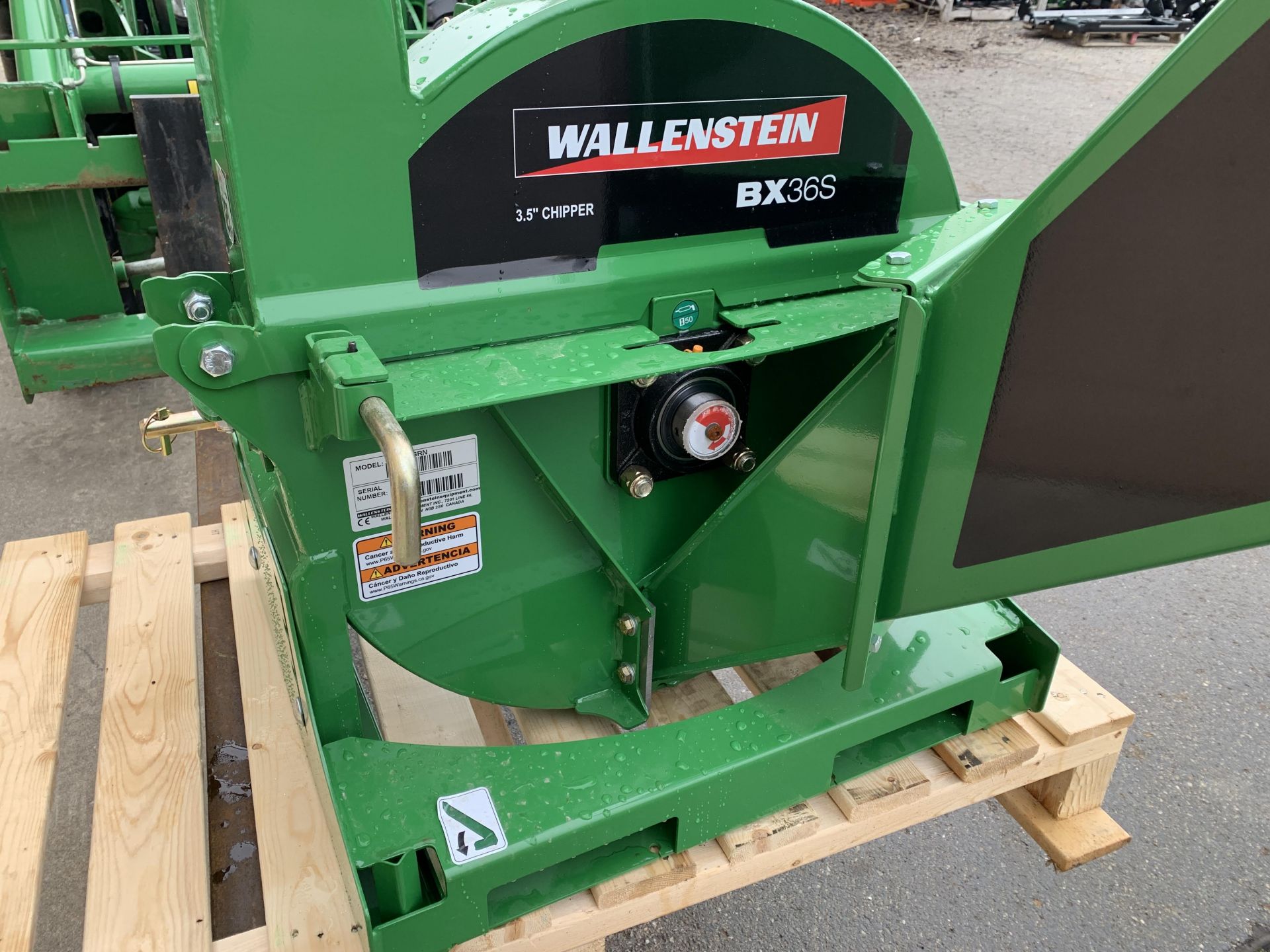

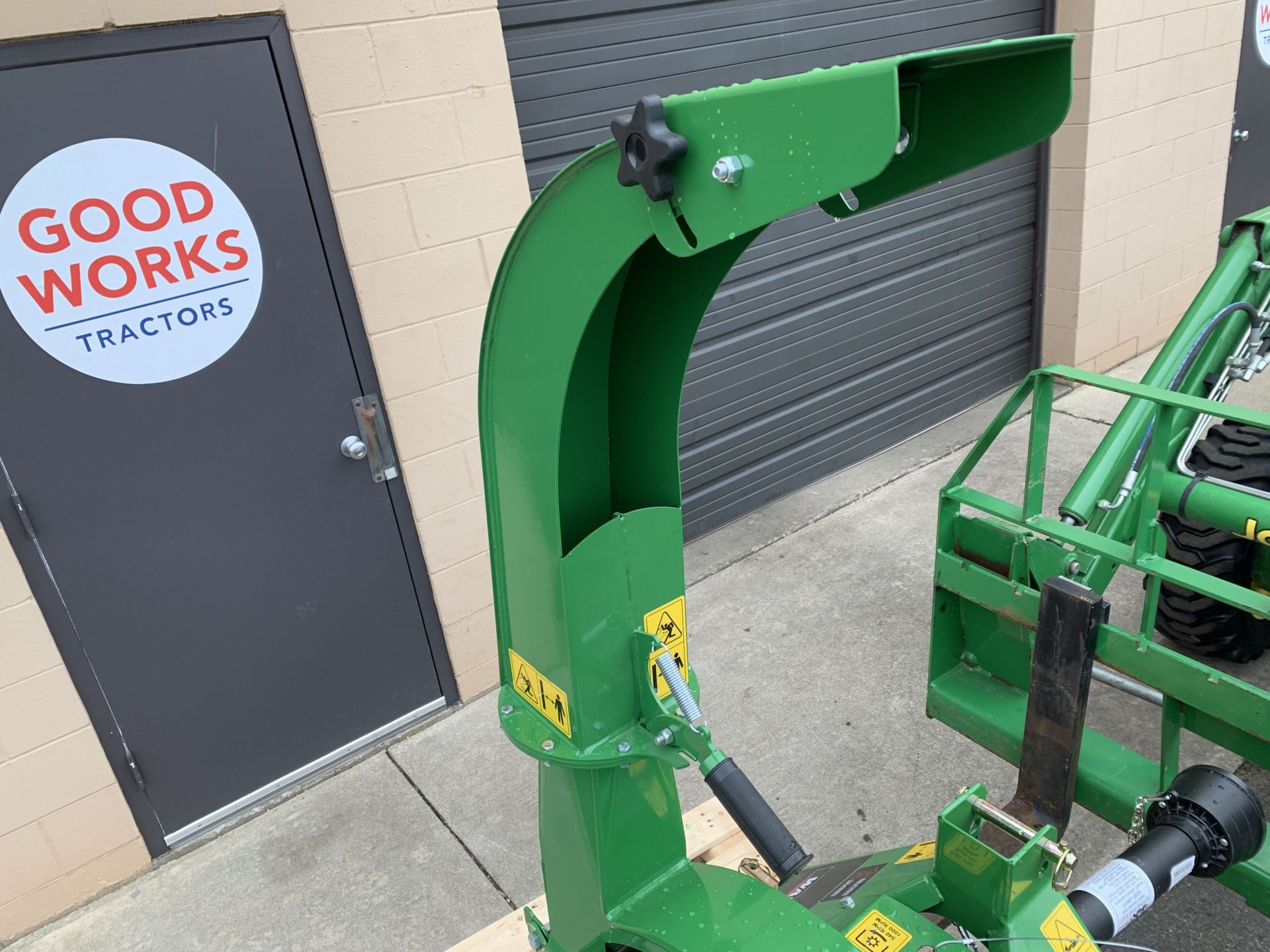

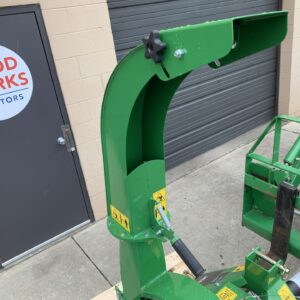

Logs are fed at an angle to the rotor, requiring less horsepower and saving fuel. The discharge chute can be rotated and an adjustable deflector provides lots of control to direct your wood chips. Knives are reversible, the engine is shear bolt protected, and there is a plate protecting the bearings from any debris. Before discharging, the limbs pass over the Twig Breaker, helping break the material into finer chips yet.

All in all this is a fantastic 3-Point, PTO powered Wood Chipper from Wallenstein and comes in a variety of sizes to fit your tractor.

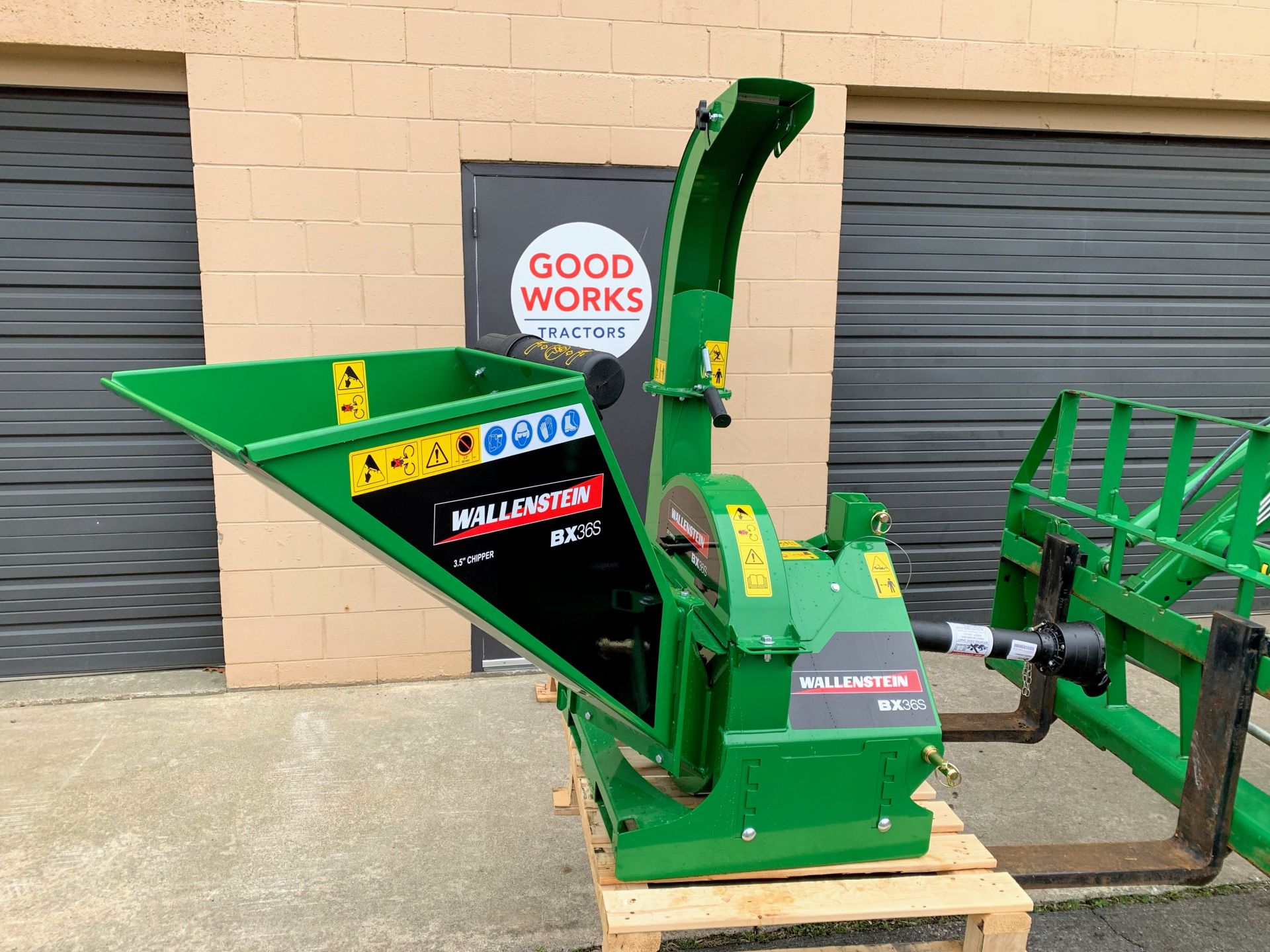

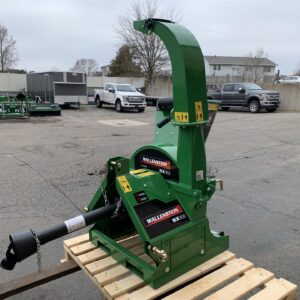

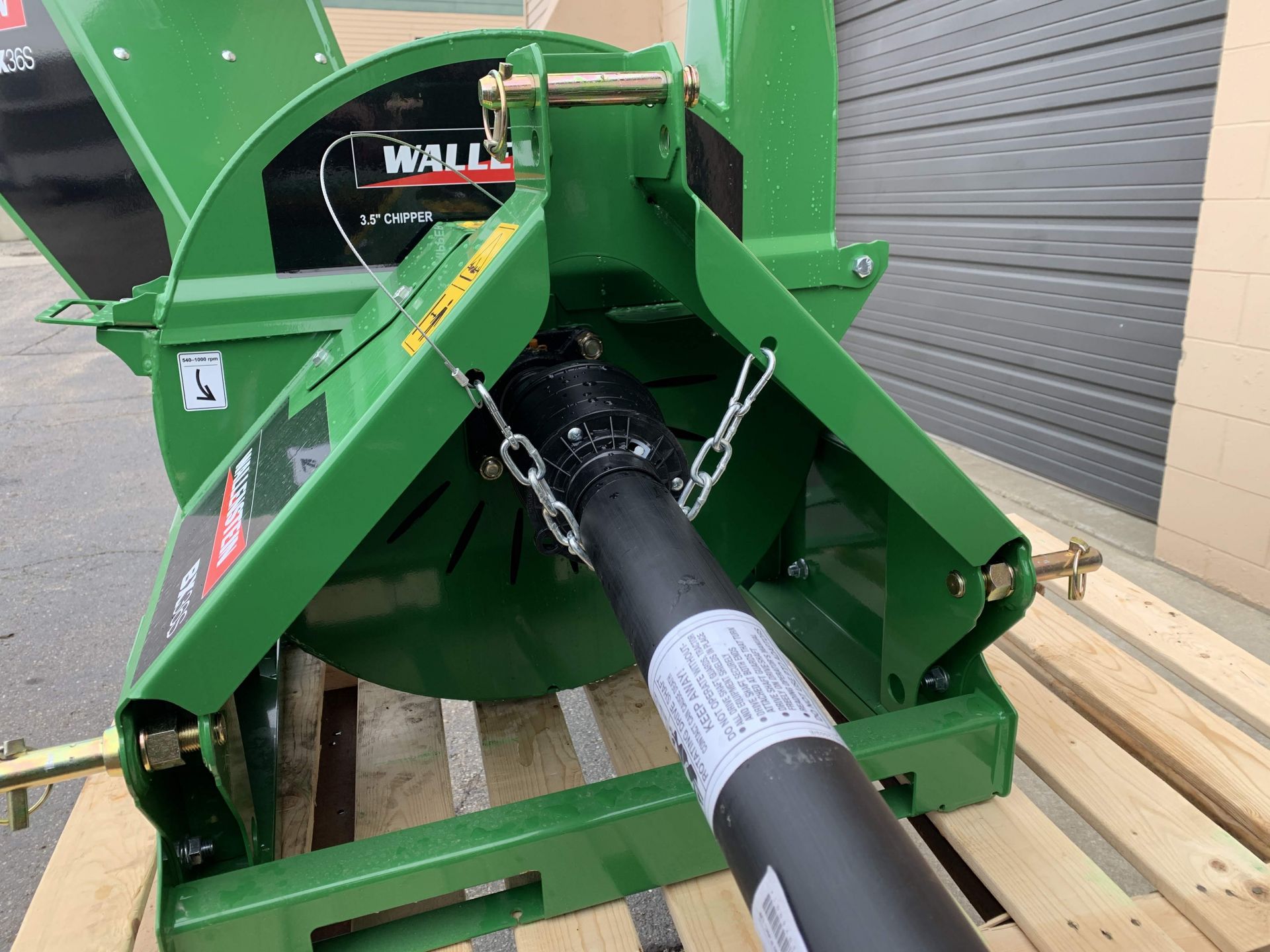

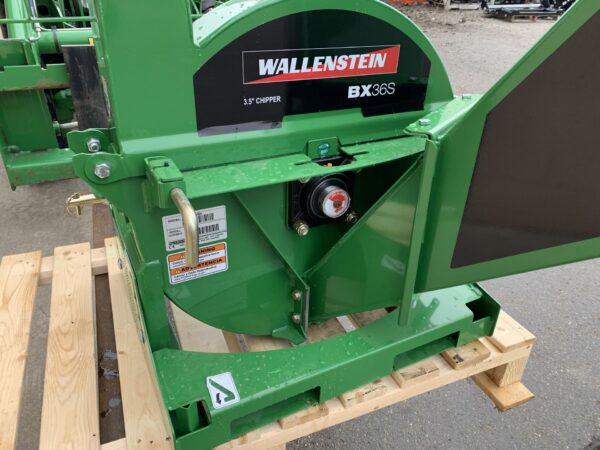

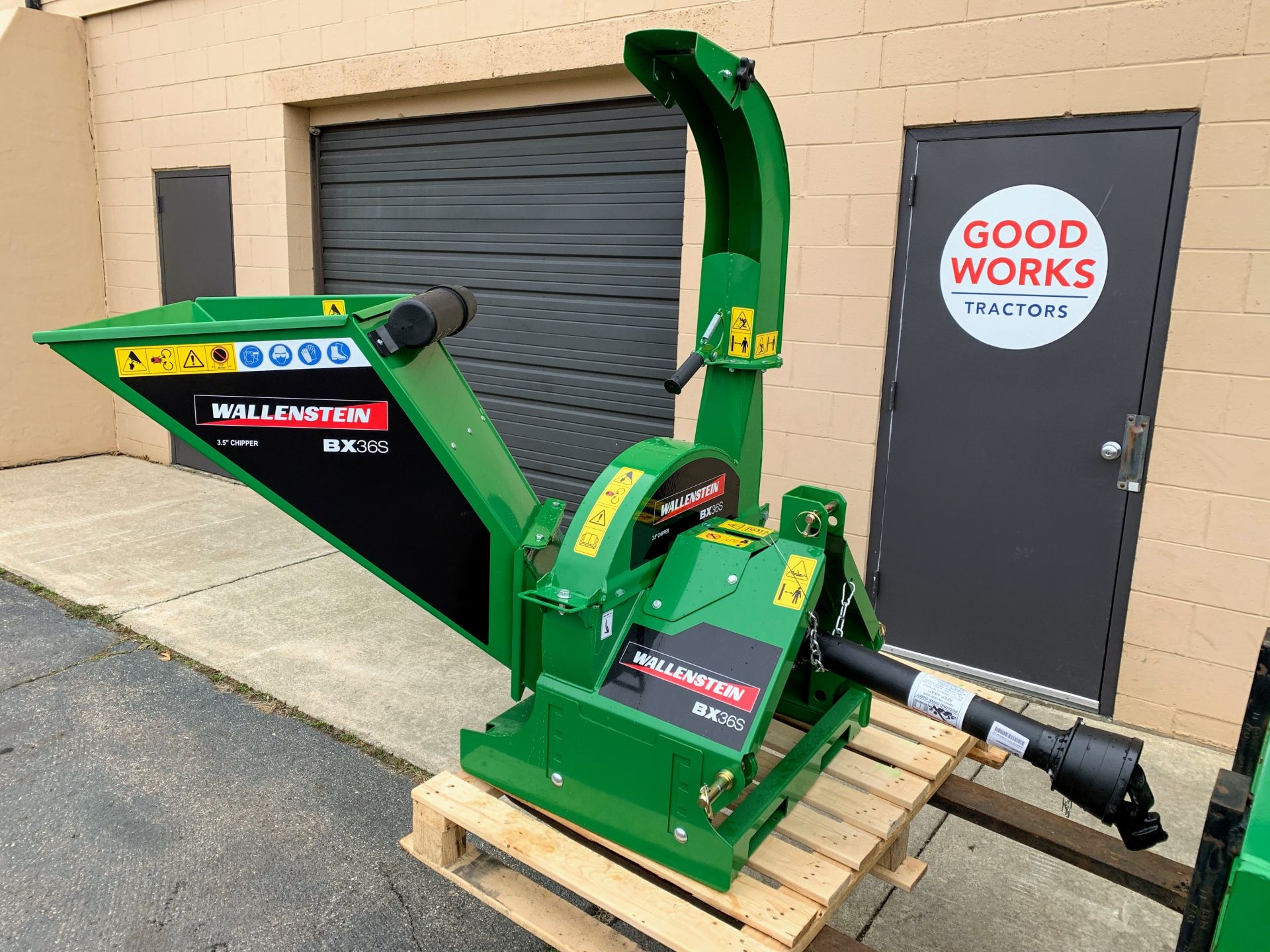

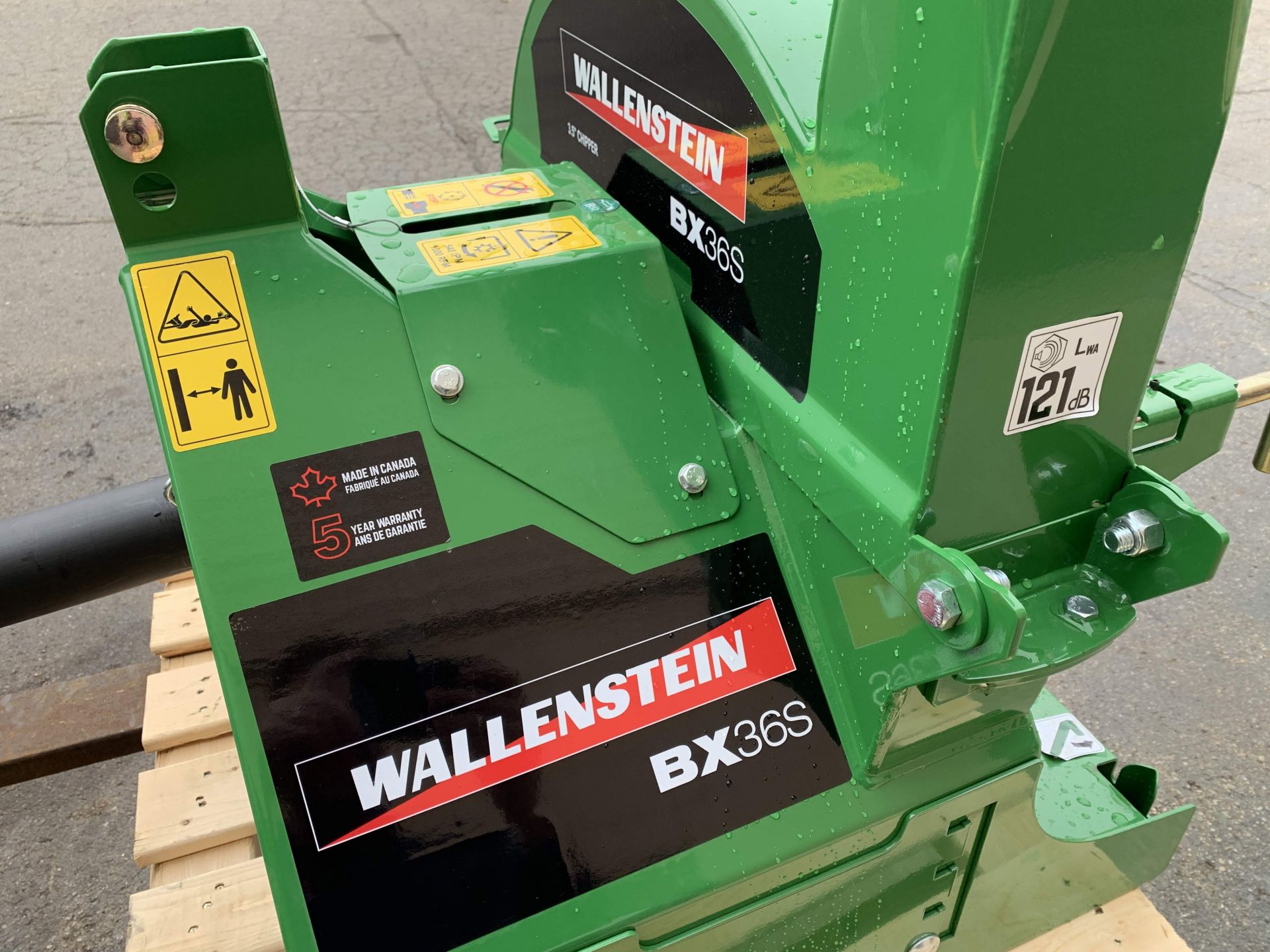

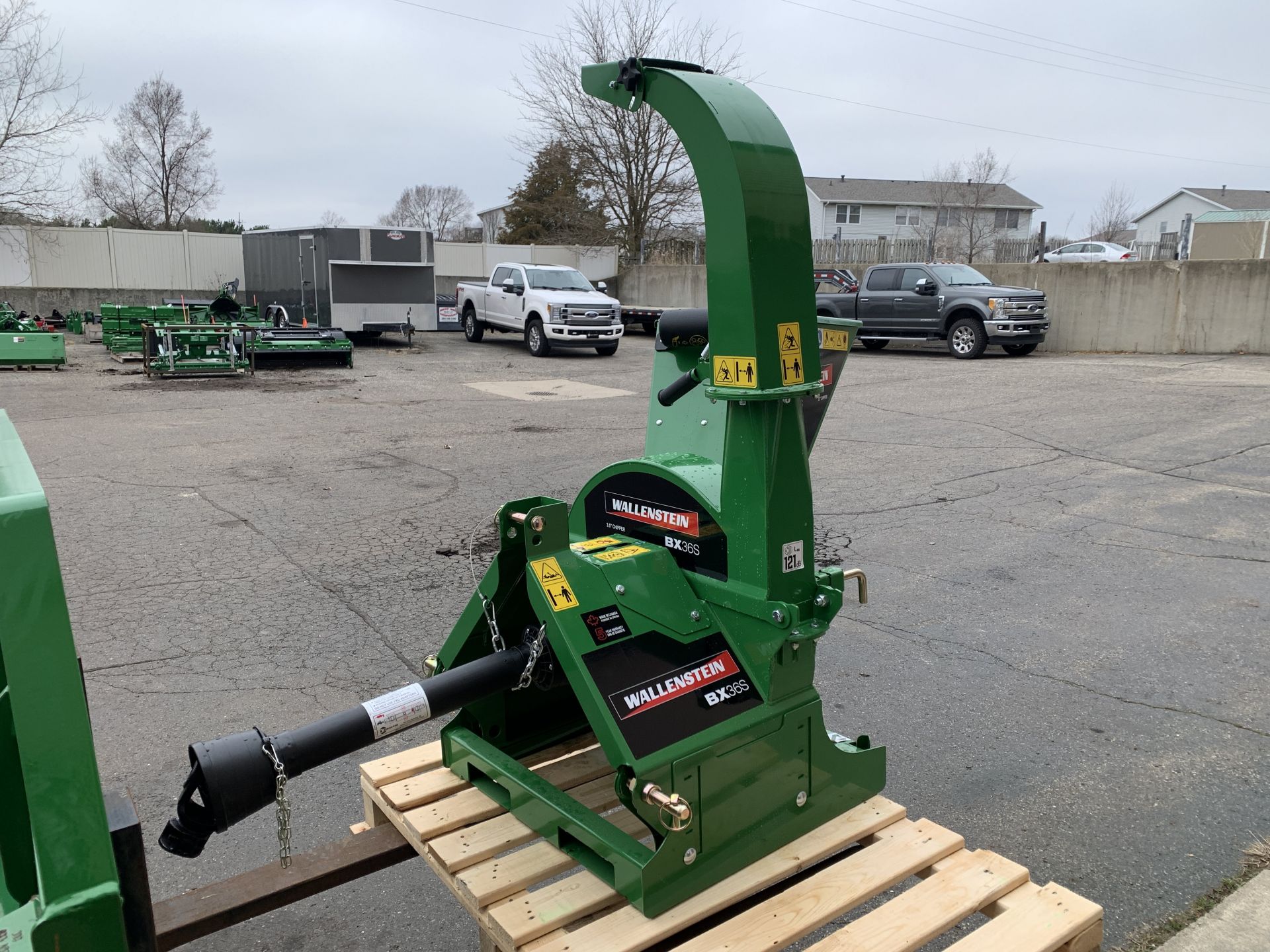

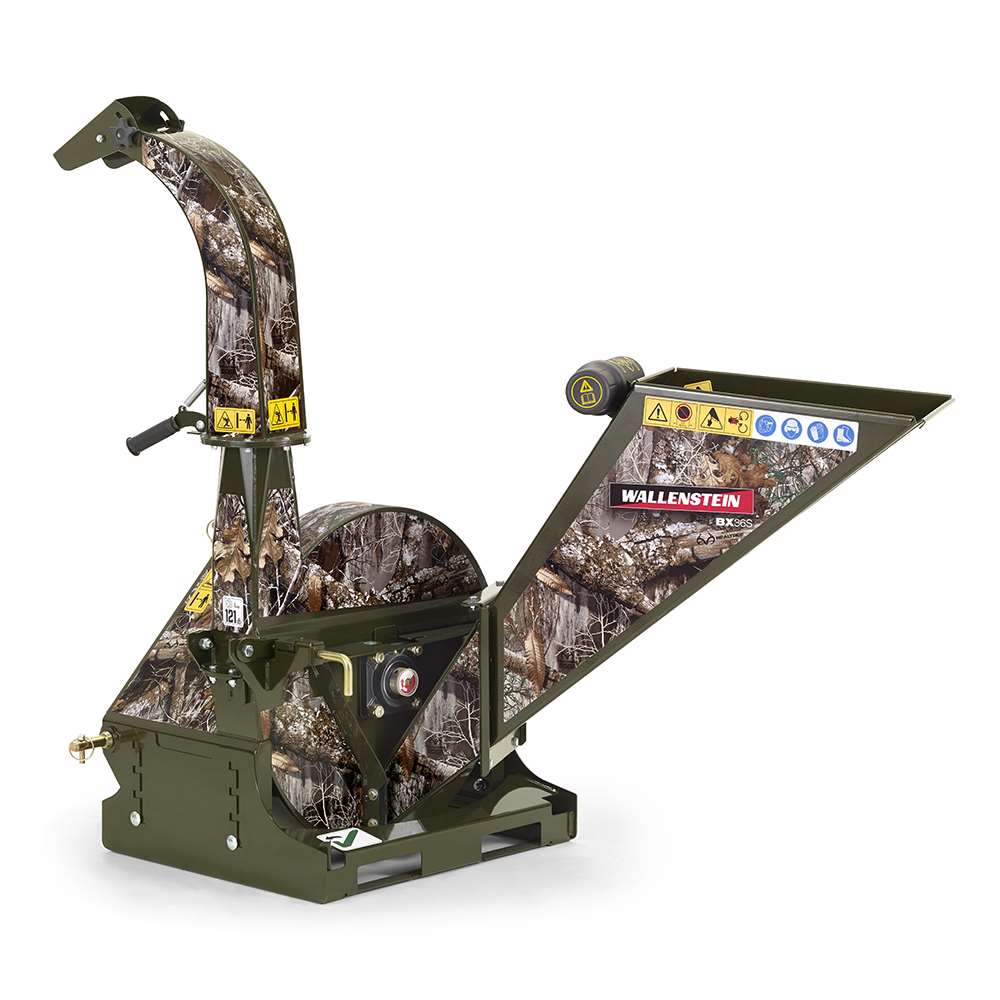

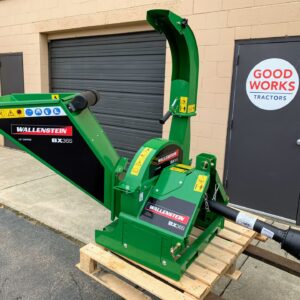

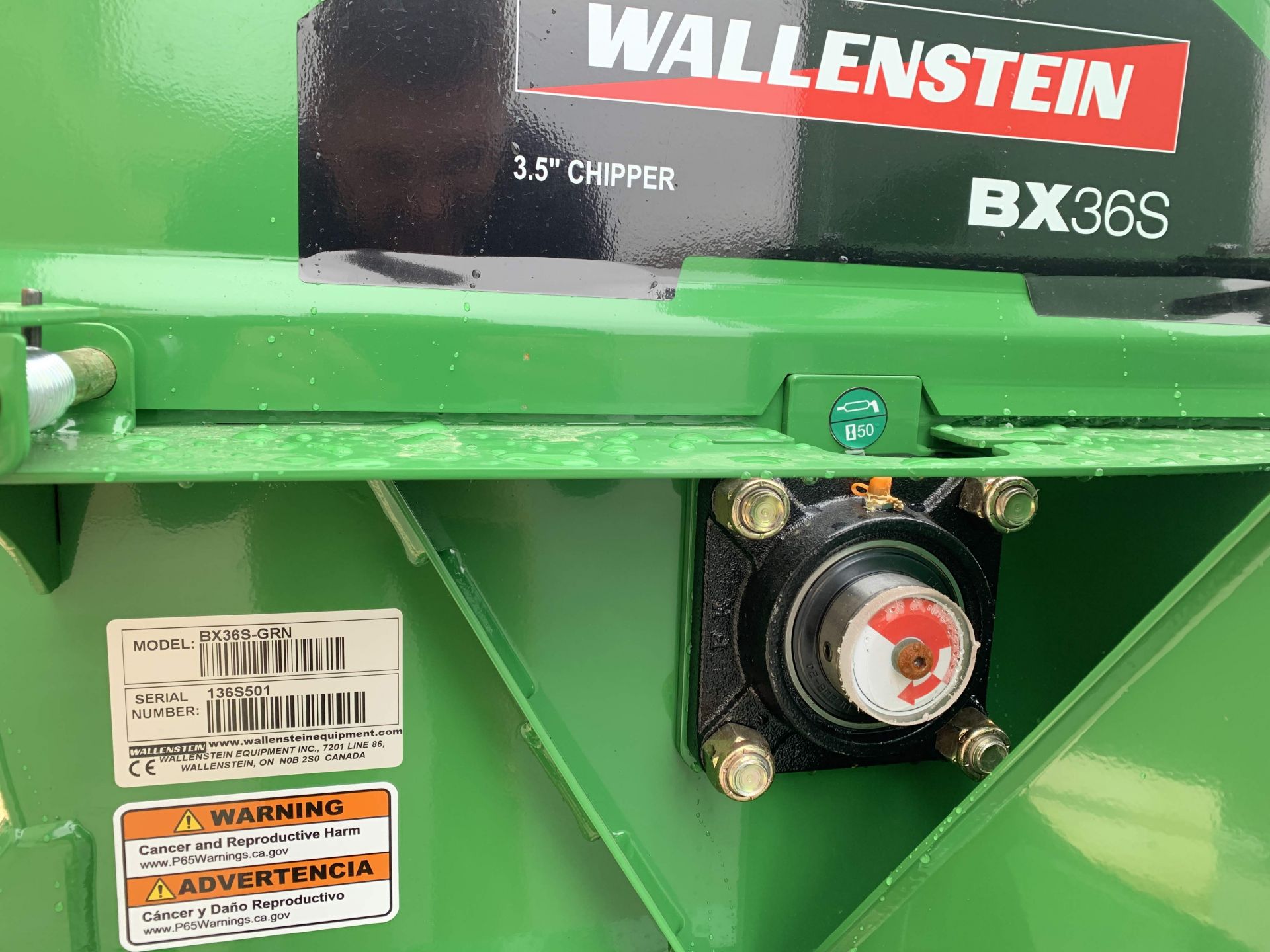

BX36S Wood Chipper Specs

• Chipping Capacity: 3.5″ (9 cm)

• Chipper Type: Disc

• Feed System: Gravity

• Engine HP Range: 12 – 30

• Chipper Hopper Opening: 13″ x 20″ (34 cm x 51 cm)

• Chipper Rotor Opening: 3.5″ x 9″ (9 cm x 23 cm)

• Number Of Chipper Knives: 4
• Rotor Diameter: 25″ (64 cm)

• Rotor Weight : 96 lbs (44 kg)

• Discharge Chute Height: 60″ (152 cm)

• Discharge Chute Rotation: 360°

• Drive System: PTO Direct Drive

• Rated RPM: 540 – 1000

• PTO Height: 13″ – 19″ (34 cm – 42 cm)

• Total Weight: 395 lbs (179 kg)

• Dimensions Open (LxWxH): 55″ x 45″ x 60″ (140 cm x 114 cm x 152 cm)

• Dimensions Folded (LxWxH): n/a

• Mounting System: Cat I, iMatch™ & Quick Hitch Compatible
• 5-year factory warranty!

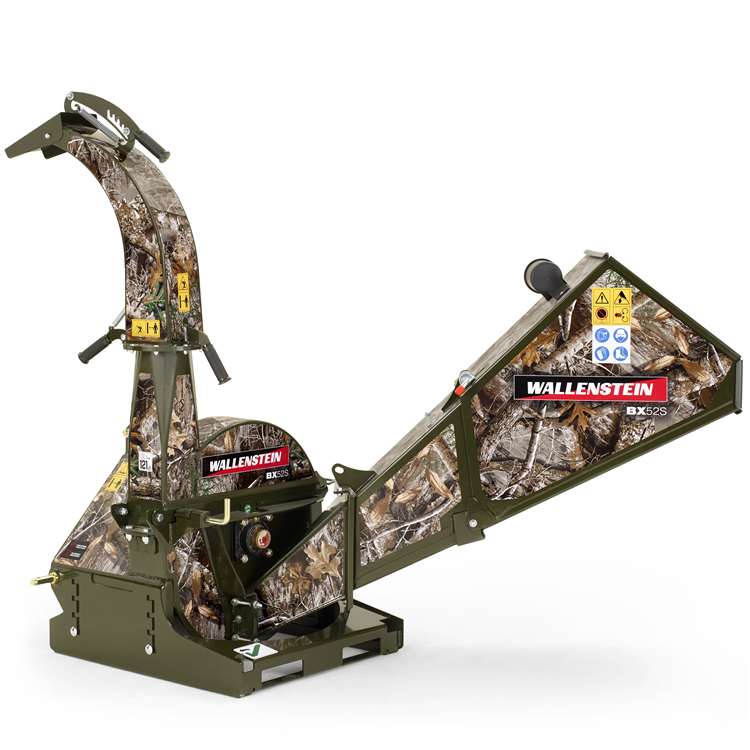

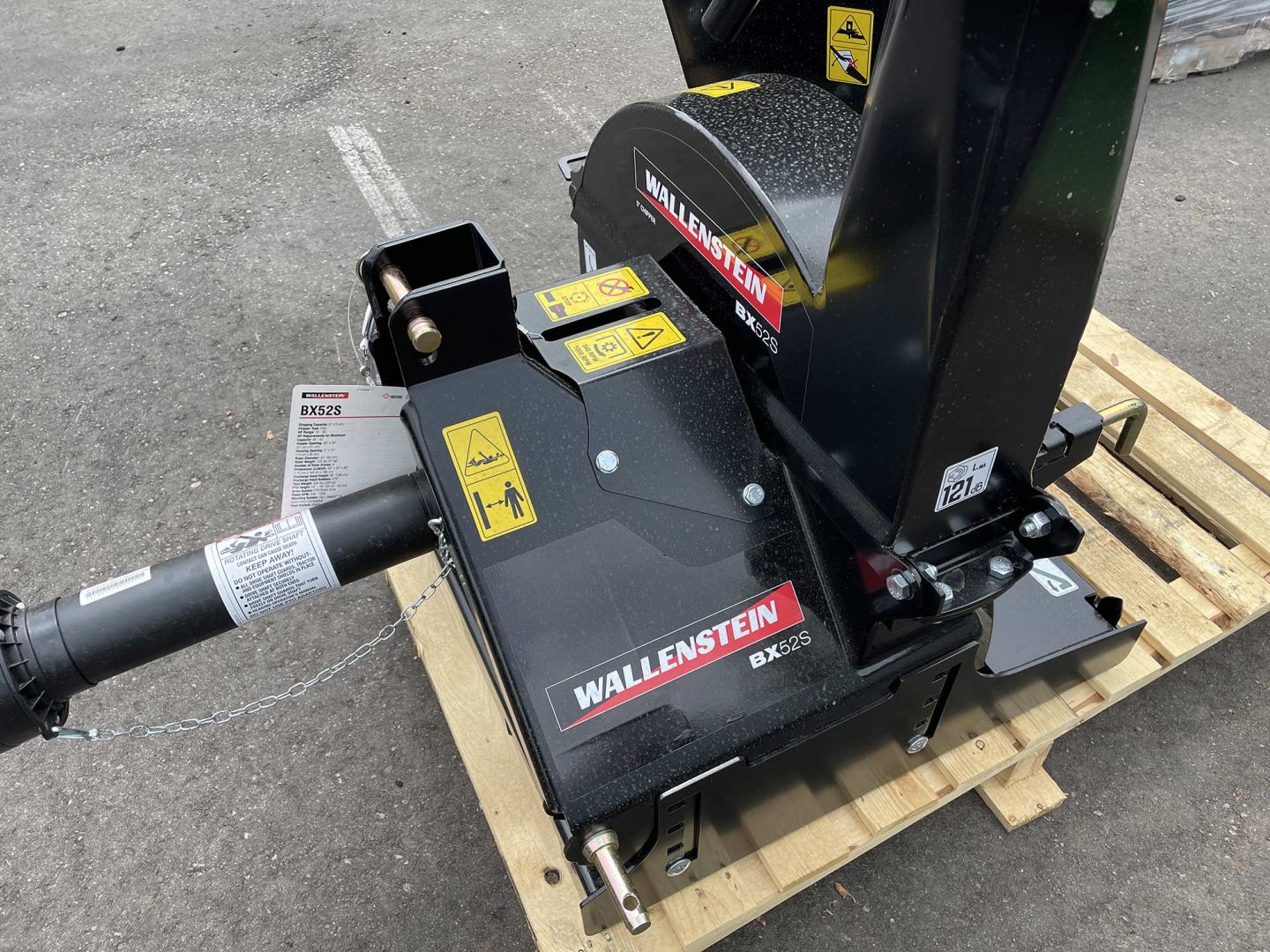

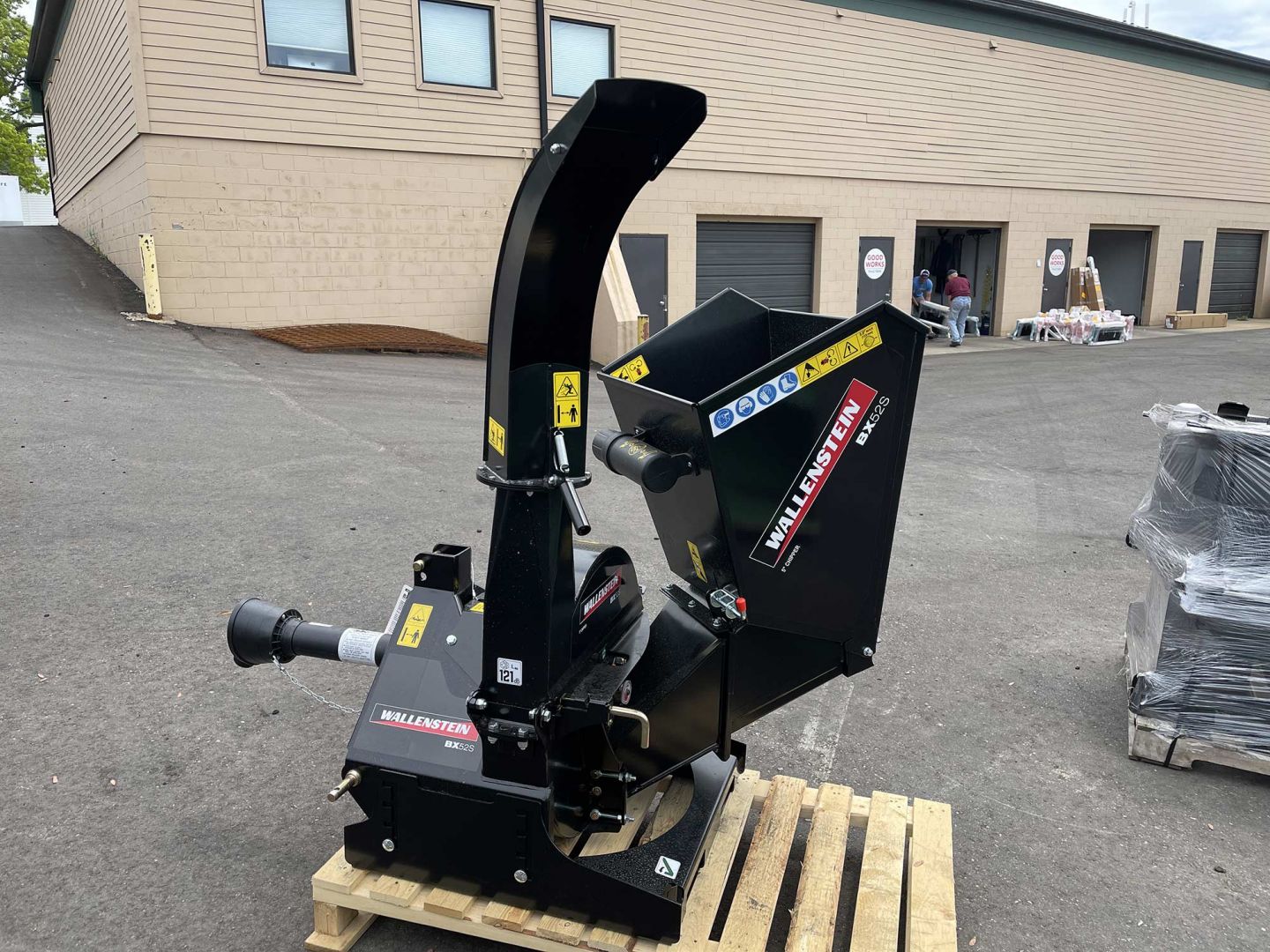

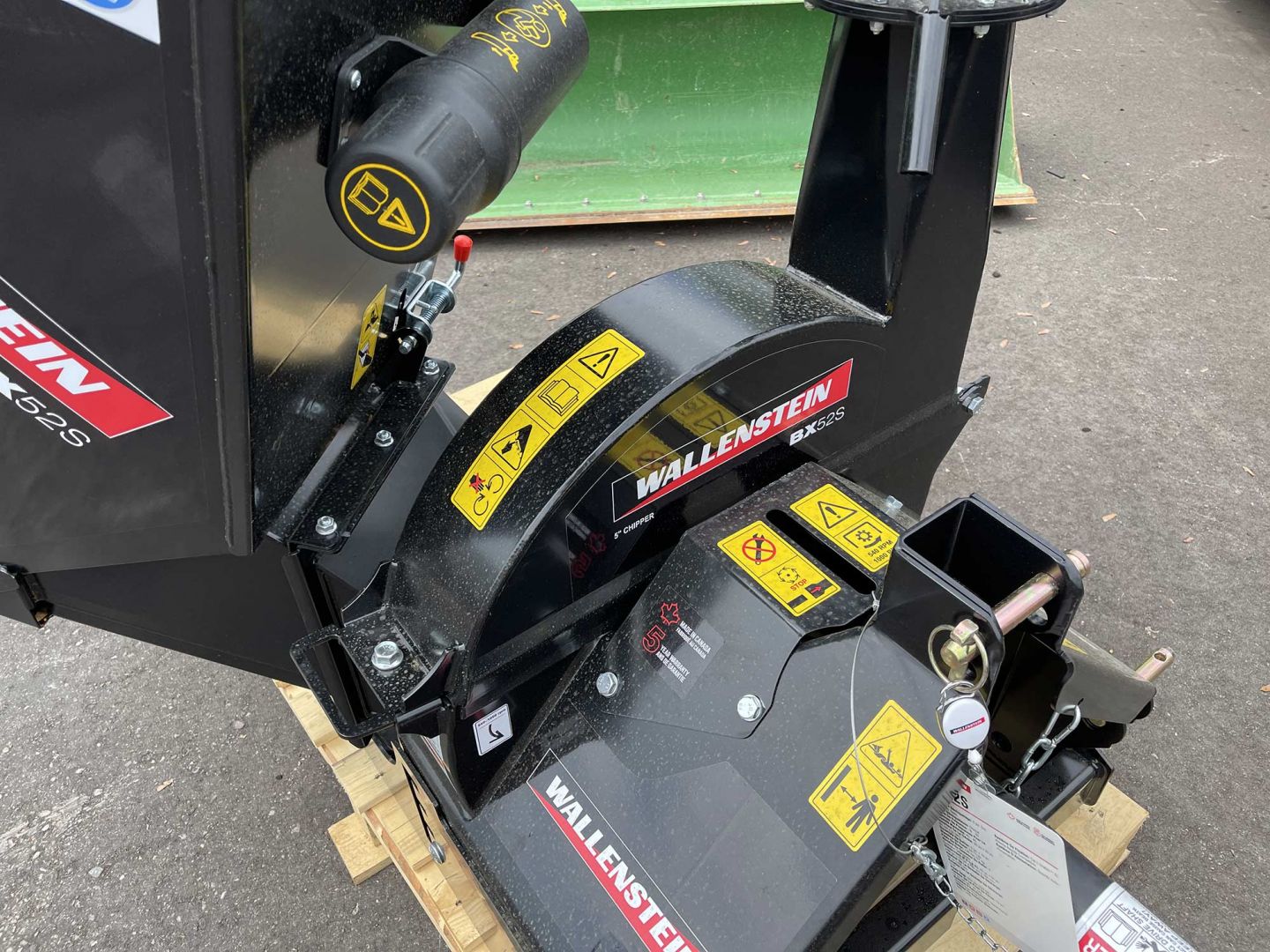

BX52S Wood Chipper Specs

• Chipping Capacity: 5″ (13 cm)-Chipper Type: Disc

• Feed System: Gravity

• Engine HP Range: 22 – 50

• Chipper Hopper Opening: 20″ x 20″ (51 cm x 51 cm)

• Chipper Rotor Opening: 5″ x 10″ (13 cm x 26 cm)

• Number Of Chipper Knives: 4

• Rotor Diameter: 25″ (64 cm)

• Rotor Weight : 125 lbs (57kg)

• Discharge Chute Height: 66″ (152 cm)

• Discharge Chute Rotation: 360°

• Drive System: PTO Direct Drive

• Rated RPM: 540 – 1000

• PTO Height: 13″ – 19″ (34 cm – 42 cm)

• Total Weight: 505 lbs (179 kg)

• Dimensions Open (LxWxH): 61″ x 64″ x 66″ (155 cm x 163 cm x 168 cm)

• Dimensions Folded (LxWxH): 43″ x 42″ x 66″ (109 cm x 107 cm x 168 cm)

• Mounting System: Cat I, iMatch™ & Quick Hitch Compatible
• 5-year factory warranty!

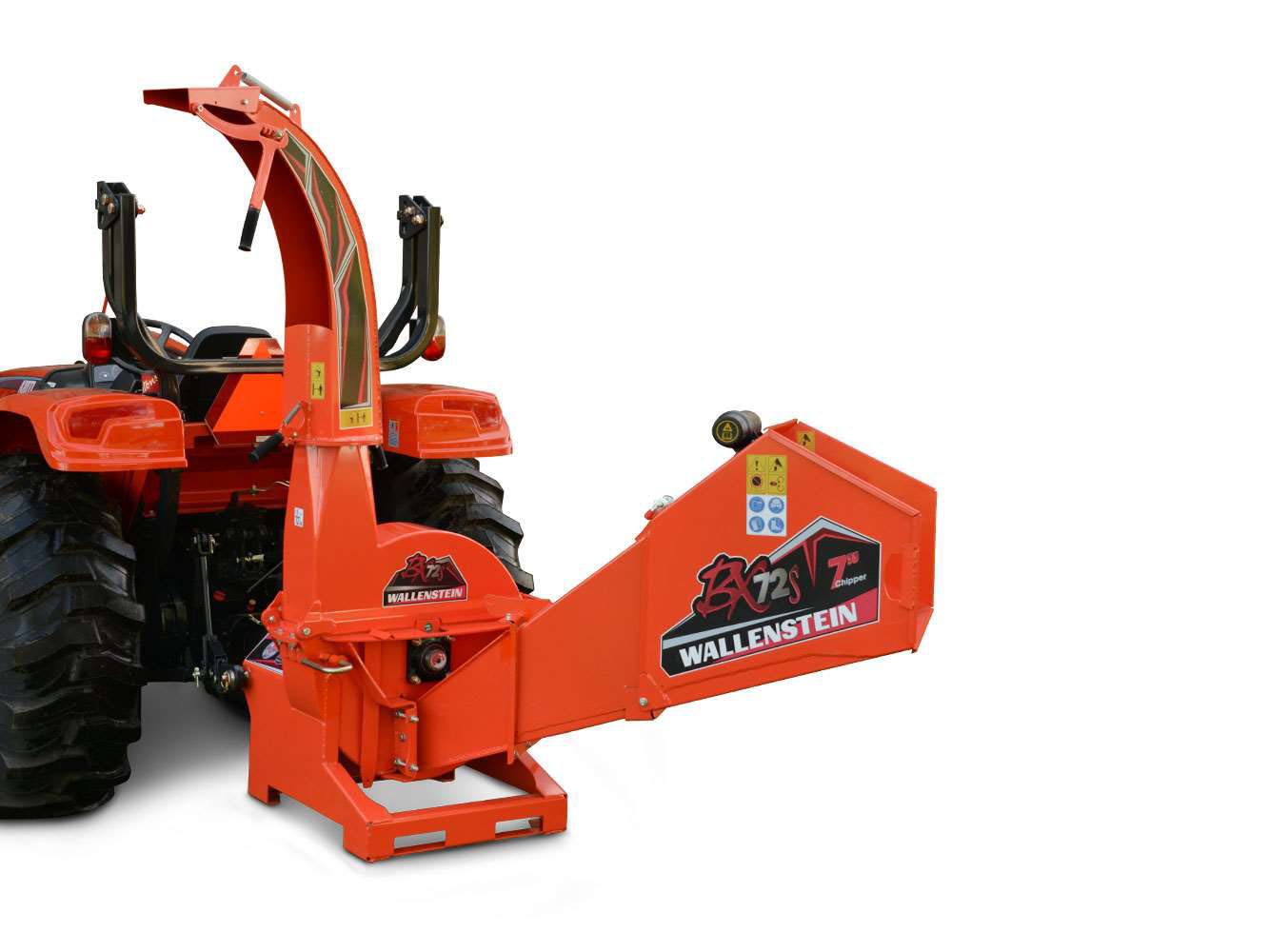

BX72S Wood Chipper Specs

• Chipping Capacity: 7″ (18 cm)
• Chipper Type: Disc

• Feed System: Gravity

• Engine HP Range: 50 – 85

• Chipper Hopper Opening: 22″ x 25″ (56 cm x 64 cm)

• Chipper Rotor Opening: 7″ x 12″ (17 cm x 30 cm)

• Number Of Chipper Knives: 4

• Rotor Diameter: 28″ (71 cm)

• Rotor Weight : 175 lbs (79kg)

• Discharge Chute Height: 82″ (208 cm)

• Discharge Chute Rotation: 360°

• Drive System: PTO Direct Drive

• Rated RPM: 540 – 1000

• PTO Height: 19″ (42 cm)

• Total Weight: 728 lbs (330 kg)

• Dimensions Open (LxWxH): 64″ x 70″ x 82″ (163 cm x 178 cm x 208 cm)

• Dimensions Folded (LxWxH): 48″ x 42″ x 82″ (122 cm x 132 cm x 208 cm)

• Mounting System: Cat I, Cat II
• 5-year factory warranty!

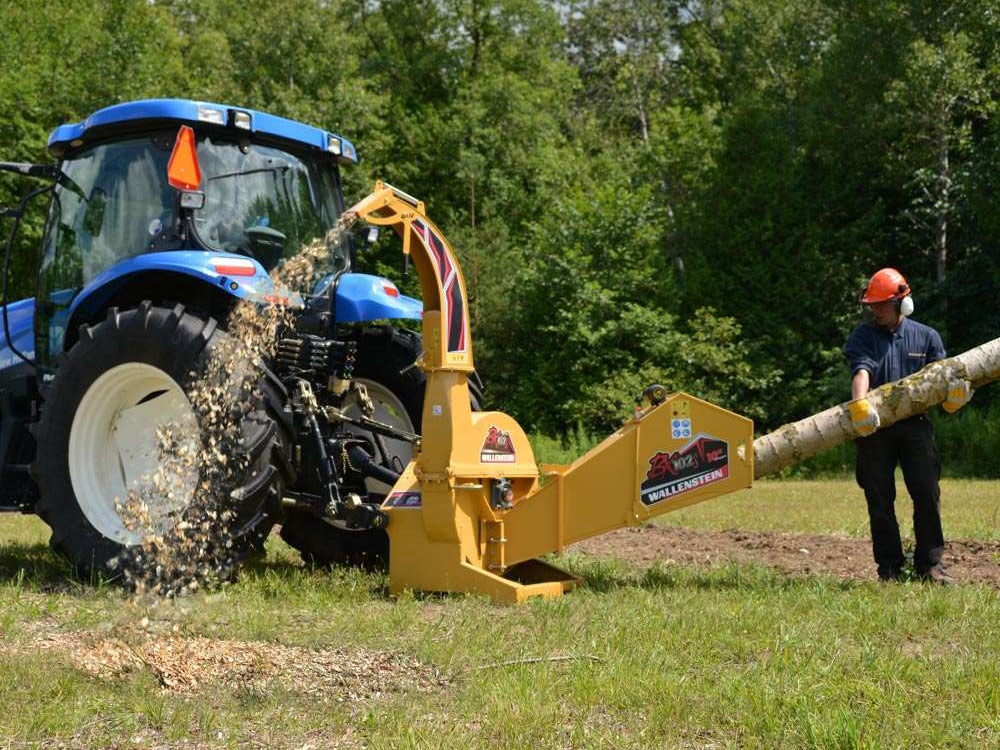

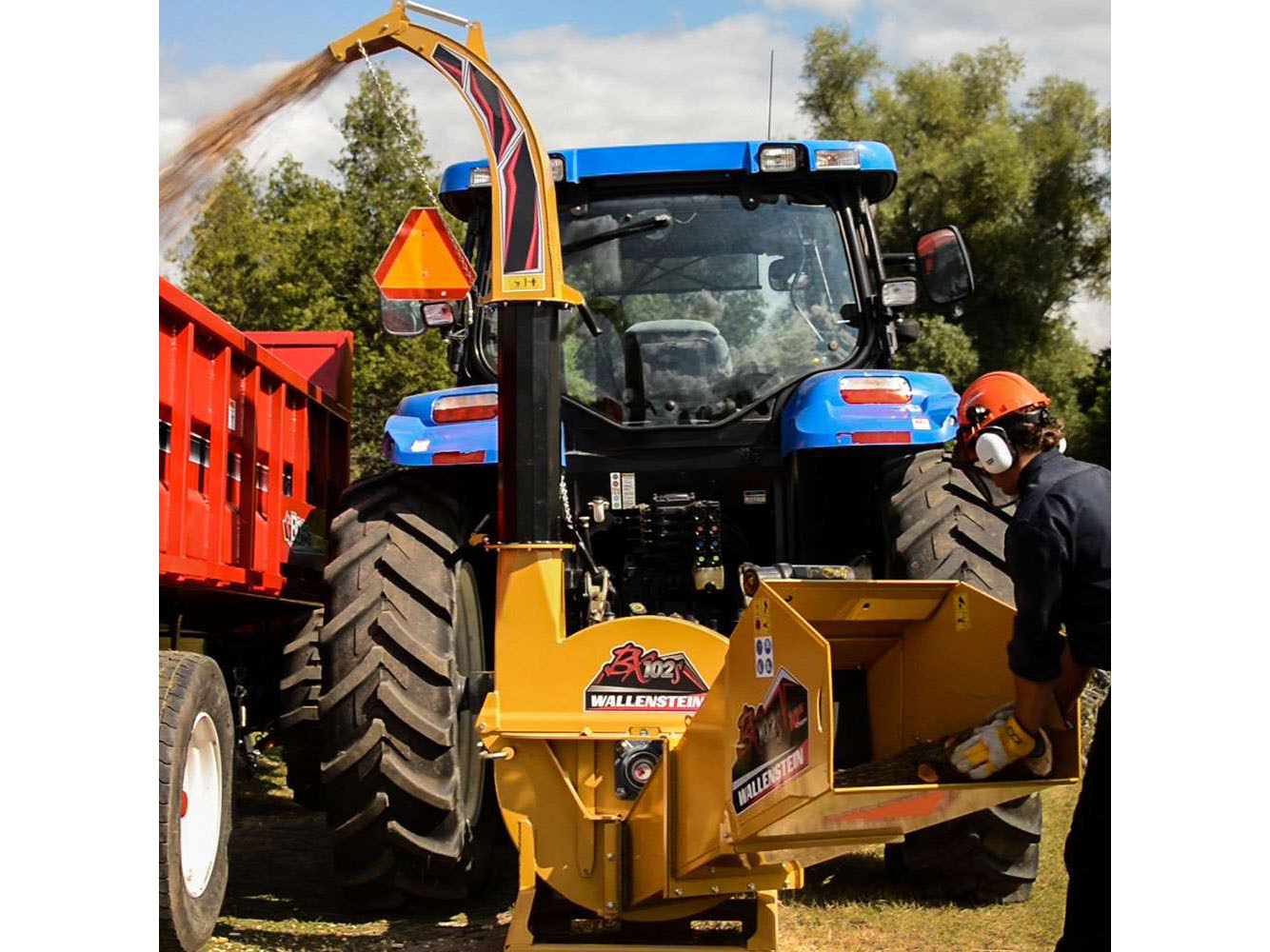

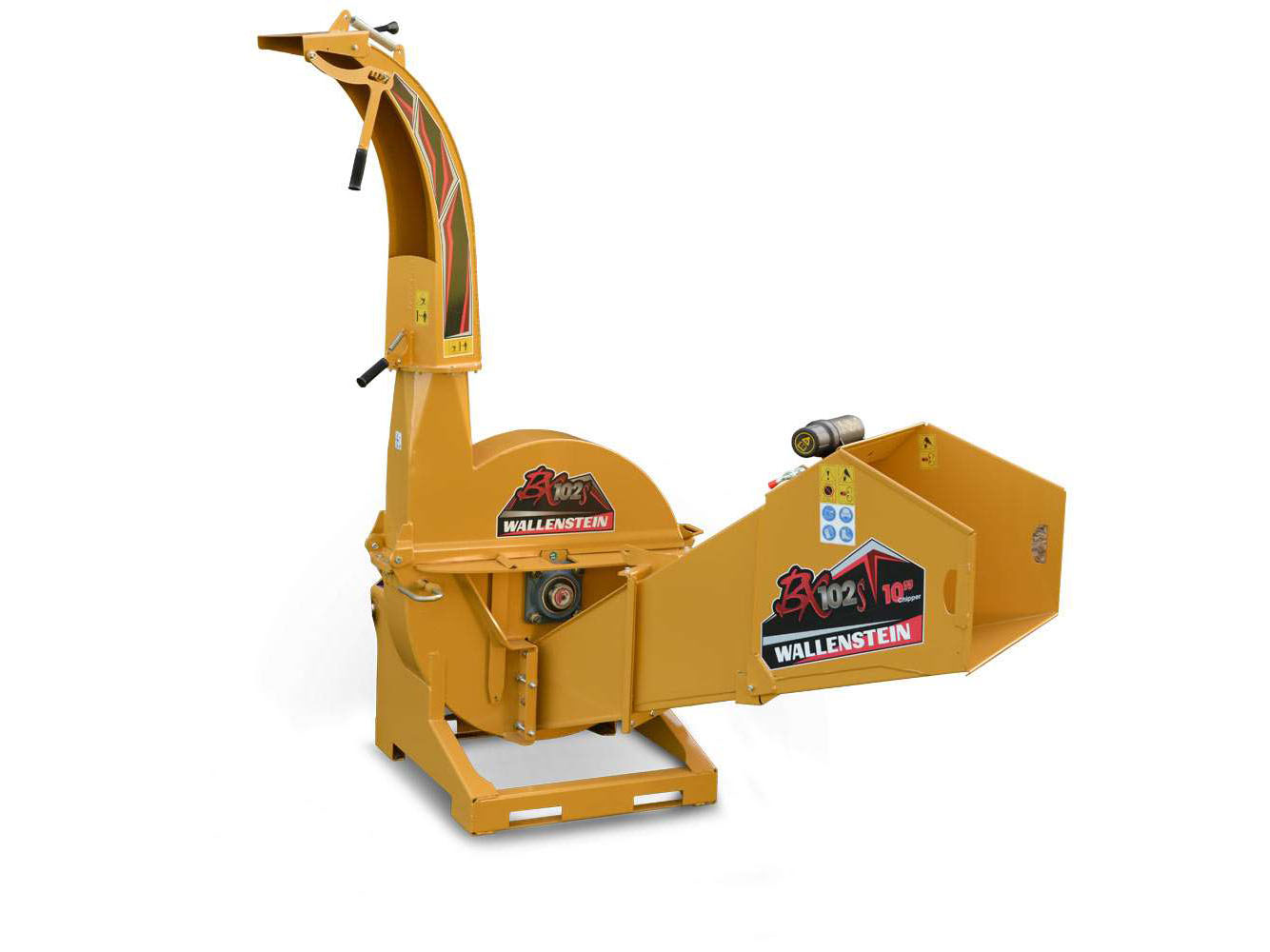

BX102S Wood Chipper Specs

• Chipping Capacity: 10″ (25 cm)
• Chipper Type: Disc

• Feed System: Gravity

• Engine HP Range: 80 – 120

• Chipper Hopper Opening: 25″ x 26″ (63 cm x 65 cm)

• Chipper Rotor Opening: 10″ x 15″ (25 cm x 38 cm)

• Number Of Chipper Knives: 4

• Rotor Diameter: 36″ (91 cm)

• Rotor Weight : 400 lbs (181kg)

• Discharge Chute Height: 89″ (226 cm)

• Discharge Chute Rotation: 360°

• Drive System: PTO Direct Drive

• Rated RPM: 540 – 1000

• PTO Height: 23″ (58 cm)

• Total Weight: 1143 lbs (519 kg)

• Dimensions Open (LxWxH): 71″ x 71″ x 89″ (180 cm x 180 cm x 226 cm)

• Dimensions Folded (LxWxH): 61″ x 58″ x 89″ (155 cm x 147 cm x 226 cm)

• Mounting System: Cat II, iMatch™ & Quick Hitch Compatible
• 5-year factory warranty!
